Register/L-Mount/Viltrox/Wide

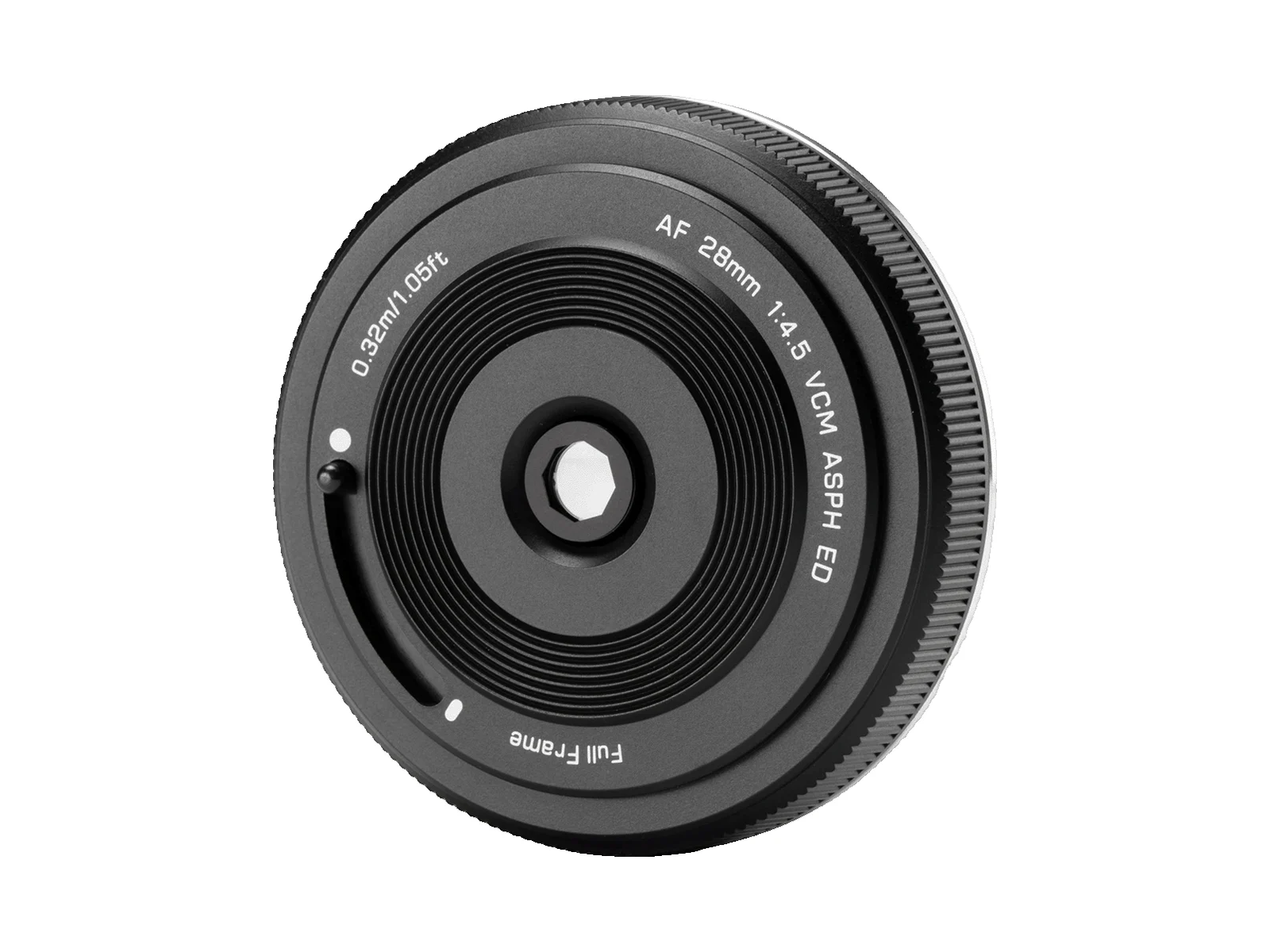

Viltrox AF 28mm F4.5 Chip L (L-Mount) — Three-quarter front view
Three-quarter front view© VILTROX
ViltroxChip

Viltrox AF 28mm F4.5 Chip L (L-Mount)

L · PRIME
28mm
APERTURE
1:4.5
AF

Launch MSRP

$99
Weight
60g
Filter
—
Min focus
0.32m
Max mag.
0.10×
Formula
6E / 6G
Released
2026

Also made for

  • Nikon Z-mount80g

The L-Mount version is 20g lighter than the Nikon Z-mount version.

AlternativesCompare with…
01

Specification sheet

Optical construction

6
Elements
6
Groups
2 LD · 2 ASPH
Blade count not published
  • 2x ED
  • 2x Aspherical
  • HD Nano Multi-layer Coating
  • Waterproof & Anti-fouling Front Coating
Aperture range
f/4.5 — f/4.5

Physical & ergonomics

CHIP
Weight
60g
⌀ × length
60.6 × 13.2mm
Filter
—
Weather sealed
No
Aperture ring
No

Autofocus actuator

VCM
Autofocus
Stabilisation
Body IBIS
Teleconverter
Not supported
AF speed score
6.8 / 10

Close-up performance

Min focus distance
0.32m
Max magnification
0.10× (1:10.0)
0.10×
0×0.25×0.5× half macro1.0× macro
02

Optical character

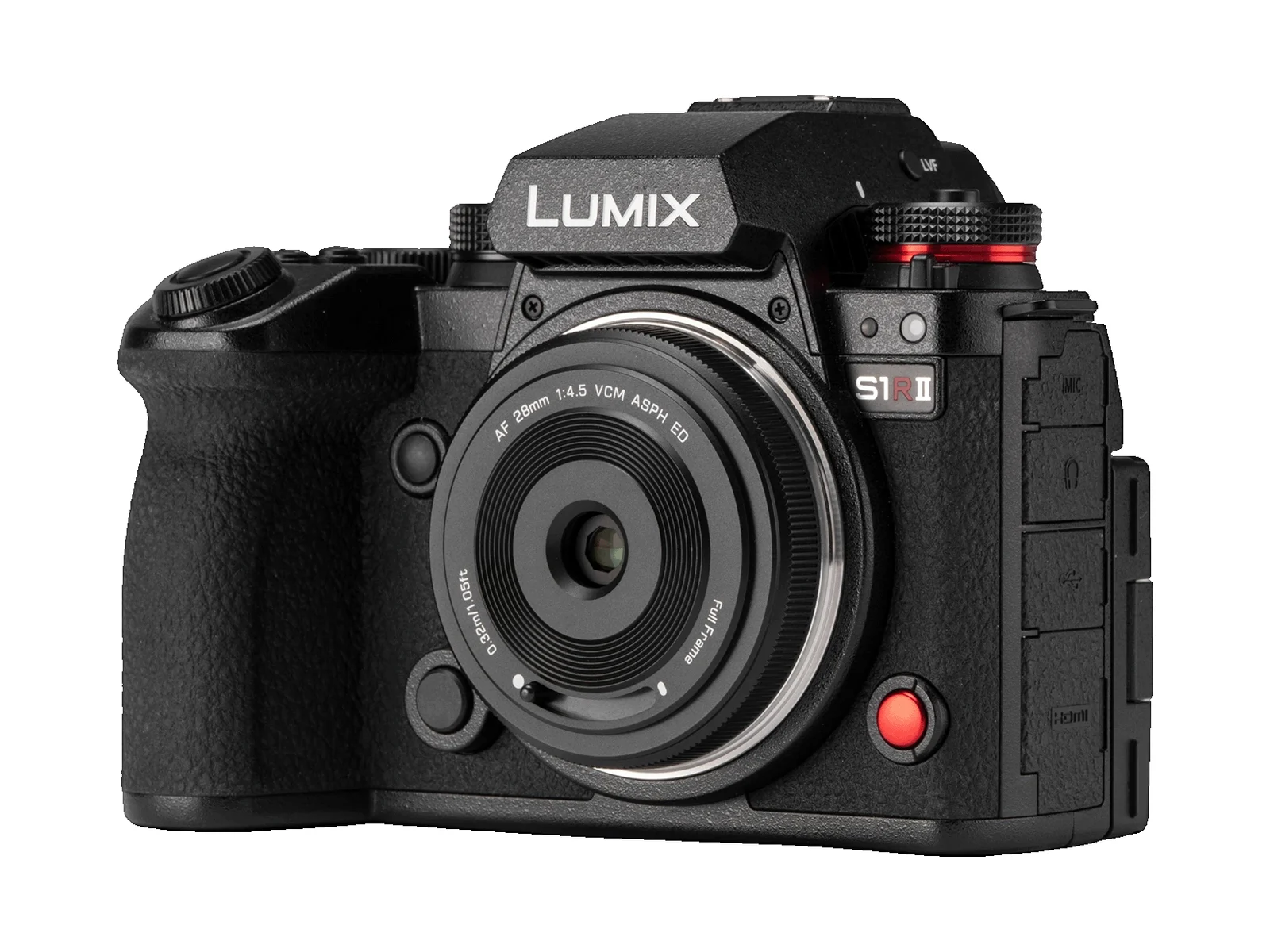

Viltrox's "Chip" pancake on L-Mount is a 60g lens that Viltrox lists at 13.2mm thin, which turns a Lumix S9 or Sigma BF into a pocketable full-frame camera. The aperture is fixed at f/4.5, there is no focus ring or filter thread, and a slide lever opens and closes a built-in lens cap.

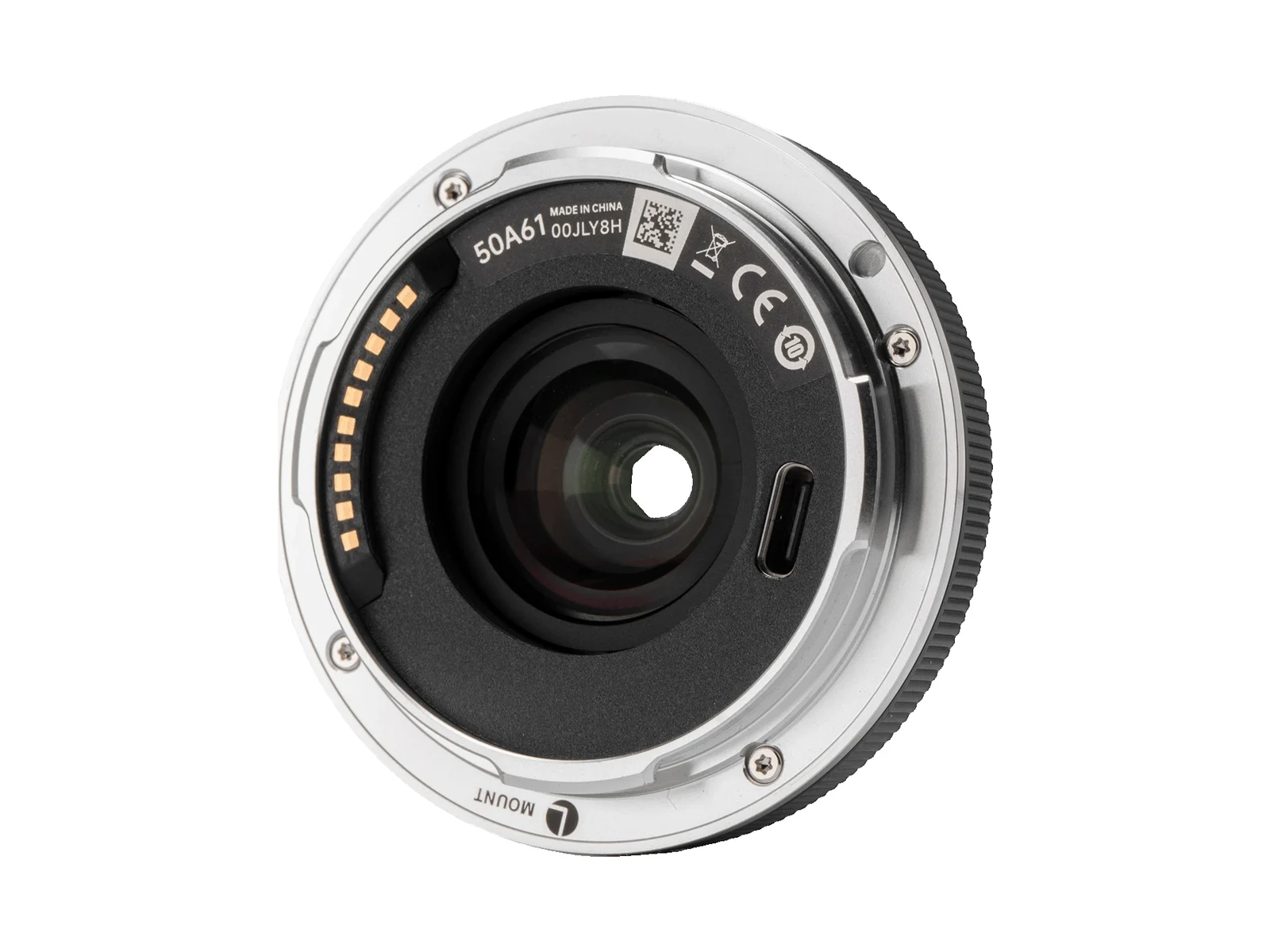

Six elements in six groups, two ED and two aspherical, sit behind an HD nano multi-layer coating and a water- and dirt-repellent front coating. A voice-coil motor moves the whole optical block for autofocus down to 0.32m, and an octagonal aperture plate produces eight-point sunstars. The lens uses the native L-Mount protocol, so cameras apply in-body corrections, and a USB-C port handles firmware.

Reviewer consensus

Testers of this optical design found a sharp centre that suits street and documentary work, but weaker borders and soft extreme corners that can't be improved because the aperture is fixed. Distortion is very low and lateral colour fringing is easy to fix, while vignetting is heavy at roughly 2.8 to 2.9 EV, sometimes with a bluish corner cast.

Autofocus is fast and silent, but there is no way to focus manually. Veiling flare from light sources just outside the frame can be severe, and the eight-ray sunstars from the front mask are long and irregular. Reviewers saw it as a fun, cheap pocket lens rather than a landscape tool; one called it his favourite full-frame pancake, while another rated its optics low.

Owner sentiment

Owners who commented like how small and unobtrusive it is for daytime street shooting.

The complaints are flare from street lights at night that ruined some shots, and one report of a camera freezing on shutter press with this lens attached. Both reports concern the Sony E version.

03

Strengths, weaknesses & performance

Strengths

  • +Only 60g and 13.2mm thin (official)
  • +Built-in sliding lens cap
  • +Fast, silent VCM autofocus
  • +Very low distortion
  • +$99 price

Weaknesses

  • −Fixed f/4.5 aperture
  • −No manual focus or filter thread
  • −Heavy vignetting (about 2.9 EV)
  • −Prone to veiling flare
  • −Soft extreme corners

Six-axis rating

SHARPBOKEHAFFLAREBUILDVALUE
Sharpness
6.6
Bokeh Rendering
5.5
Autofocus Speed
6.8
Flare Resistance
6.0
Build / Sealing
6.6
Value / Size
8.8

Editorial 0–10 ratings synthesised from published reviews.

04

Technical specifications

Optics
MountL-Mount (FF) · full frame
Focal length28mm
CategoryWide
Maximum aperturef/4.5
Minimum aperturef/4.5
Construction6 elements in 6 groups
Special elements2x ED · 2x Aspherical · HD Nano Multi-layer Coating · Waterproof & Anti-fouling Front Coating
Aperture bladesNot published
Focus
Focus typeAutofocus
DriveVCM
Minimum focus0.32m
Max magnification0.10×
StabilisationNone (uses body IBIS)
TeleconvertersNot supported
Body
Weight60g
Diameter × length60.6 × 13.2mm
Filter threadNone
Weather sealingNo
Aperture ringNo
De-clickable apertureNo
Release year2026
Launch MSRP$99 USD
05

Sources

Verified 2026-10-25 against the pages below. Specifications come from the maker; summaries only reflect reviews and owner reports we actually read.

Specifications

  • viltrox.com› products/af-28mm-f4-5-l
  • viltrox.com› products/af-28mm-f4-5-l.json
  • thedeadpixelssociety.com› viltrox-launches-af-28mm-f4-5-chip-l-mount-lens/

Launch price

  • thedeadpixelssociety.com› viltrox-launches-af-28mm-f4-5-chip-l-mount-lens/

Professional reviews

  • opticallimits.com› sony/sony-fe-full-format/viltrox-28mm-f-4-5-vcm-review/
  • phillipreeve.net› blog/review-viltrox-28mm-4-5-af-pancake/

Owner reports

  • phillipreeve.net› blog/review-viltrox-28mm-4-5-af-pancake/
