Register/Nikon Z-mount/Viltrox/Wide

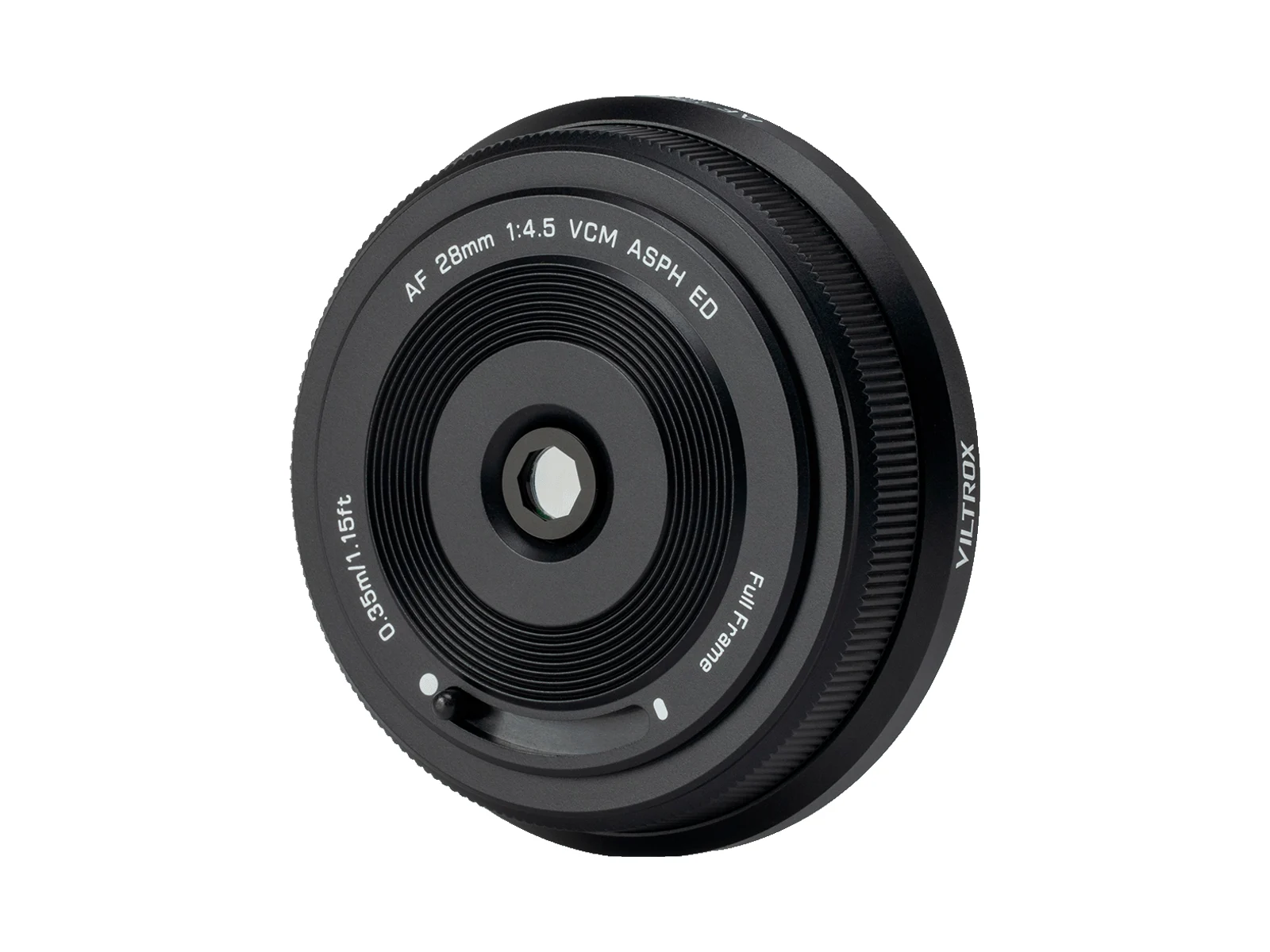

Viltrox AF 28mm F4.5 Z — AF 28mm F4.5 Z, three-quarter front view
AF 28mm F4.5 Z, three-quarter front view© VILTROX
ViltroxChip

Viltrox AF 28mm F4.5 Z

Z · PRIME
28mm
APERTURE
1:4.5
AF

Launch MSRP

$99
Weight
80g
Filter
—
Min focus
0.35m
Max mag.
0.10×
Formula
6E / 6G
Released
2025
AlternativesCompare with…
01

Specification sheet

Optical construction

6
Elements
6
Groups
2 LD · 2 ASPH
8 rounded blades
  • 2x ED
  • 2x Aspherical
  • HD Nano Coating
Aperture range
f/4.5 — f/4.6

Physical & ergonomics

CHIP
Weight
80g
⌀ × length
65.3 × 16.8mm
Filter
—
Weather sealed
No
Aperture ring
No

Autofocus actuator

VCM
Autofocus
Stabilisation
Body IBIS
Teleconverter
Not supported
AF speed score
6.6 / 10

Close-up performance

Min focus distance
0.35m
Max magnification
0.10× (1:10.0)
0.10×
0×0.25×0.5× half macro1.0× macro
02

Optical character

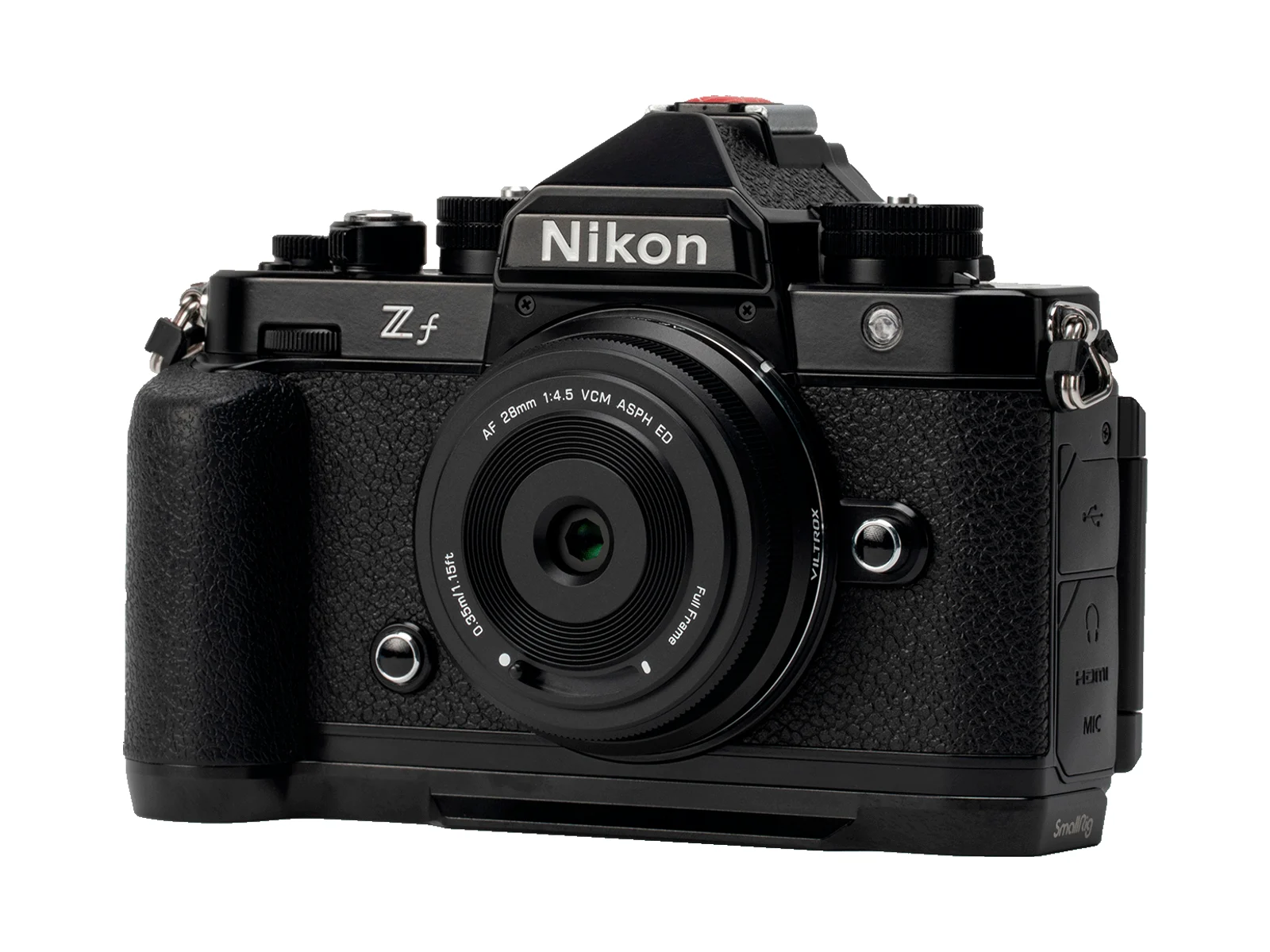

Nicknamed the "Chip", this is an 80g, 16.8mm-thin autofocus pancake that turns a Nikon Zf, Z5 or Z6-series body into a jacket-pocket camera, and Viltrox calls it its lightest full-frame Z lens. The aperture is fixed at f/4.5, there is no focus ring, and a slide lever opens and closes a built-in lens cap.

Six elements, including two ED and two aspherical, give decent sharpness for street and documentary work. A voice-coil motor handles focus, and a USB-C port takes firmware updates. A fixed octagonal stop produces eight-point sunstars.

Reviewer consensus

Reviewers judge the image quality acceptable to good for the size and price. Centre detail is fine for everyday shooting, lateral CA is low, and distortion is minor. Contrast and corner resolution trail first-party compact primes such as the NIKKOR Z 28mm f/2.8, and there is heavy vignetting of almost 3 EV, sometimes with a blue corner cast.

Autofocus is quick in good light but can be blunt in dim conditions, and there is no manual focus override. Flare from light sources just outside the frame can be severe, though it still compares well with other pancakes.

Owner sentiment

Owners love how small it makes a Zf or Z6-series body and many call it the most fun lens they own at $99. The built-in cap and the eight-point sunstars come up often, and it suits the retro styling of the Zf.

The quirks are the fixed f/4.5 aperture, no filter thread, the need to open the cap before powering on, a loose rattle from the focus group when the camera is off, and slow focusing at night.

03

Strengths, weaknesses & performance

Strengths

  • +Only 80g and 16.8mm thin
  • +Built-in sliding lens cap
  • +Autofocus at a $99 price
  • +Low lateral CA and distortion
  • +USB-C firmware updates

Weaknesses

  • −Fixed f/4.5 aperture
  • −No manual focus ring or filter thread
  • −Heavy vignetting
  • −Prone to veiling flare

Six-axis rating

SHARPBOKEHAFFLAREBUILDVALUE
Sharpness
6.9
Bokeh Rendering
5.5
Autofocus Speed
6.6
Flare Resistance
6.2
Build / Sealing
6.8
Value / Size
9.0

Editorial 0–10 ratings synthesised from published reviews.

04

Technical specifications

Optics
MountNikon Z (FX) · full frame
Focal length28mm
CategoryWide
Maximum aperturef/4.5
Minimum aperturef/4.6
Construction6 elements in 6 groups
Special elements2x ED · 2x Aspherical · HD Nano Coating
Aperture blades8
Focus
Focus typeAutofocus
DriveVCM
Minimum focus0.35m
Max magnification0.10×
StabilisationNone (uses body IBIS)
TeleconvertersNot supported
Body
Weight80g
Diameter × length65.3 × 16.8mm
Filter threadNone
Weather sealingNo
Aperture ringNo
De-clickable apertureNo
Release year2025
Launch MSRP$99 USD
05

Sources

Specifications

  • viltrox.com/products/af-28mm-f4-5-z
  • viltrox.com/products/af-28mm-f4-5-z.json
  • viltrox.com/products/28mm-f4-5-fe
  • phillipreeve.net/blog/review-viltrox-28mm-4-5-af-pancake/
  • digitalcameraworld.com/reviews/viltrox-af-28mm-f45-fe-review
