Panasonic LUMIX S 14-28mm F4-5.6 MACRO
Launch MSRP
$798- Weight
- 345g
- Filter
- ⌀77mm
- Min focus
- 0.15m
- Max mag.
- 0.50×
- Formula
- 14E / 10G
- Released
- 2023
Specification sheet
Optical construction
- 1x Aspherical ED
- 1x Aspherical
- 3x ED
- 1x UHR
- Fluorine Coating
- Aperture range
- f/4–5.6 — f/22
Physical & ergonomics
- Weight
- 345g
- ⌀ × length
- 84.0 × 89.8mm
- Filter
- ⌀77mm
- Weather sealed
- Yes
- Aperture ring
- No
Autofocus actuator
- Stabilisation
- Body IBIS
- Teleconverter
- Not supported
- AF speed score
- 8.6 / 10
Close-up performance
- Min focus distance
- 0.15m
- Max magnification
- 0.50× (1:2.0)
Optical character

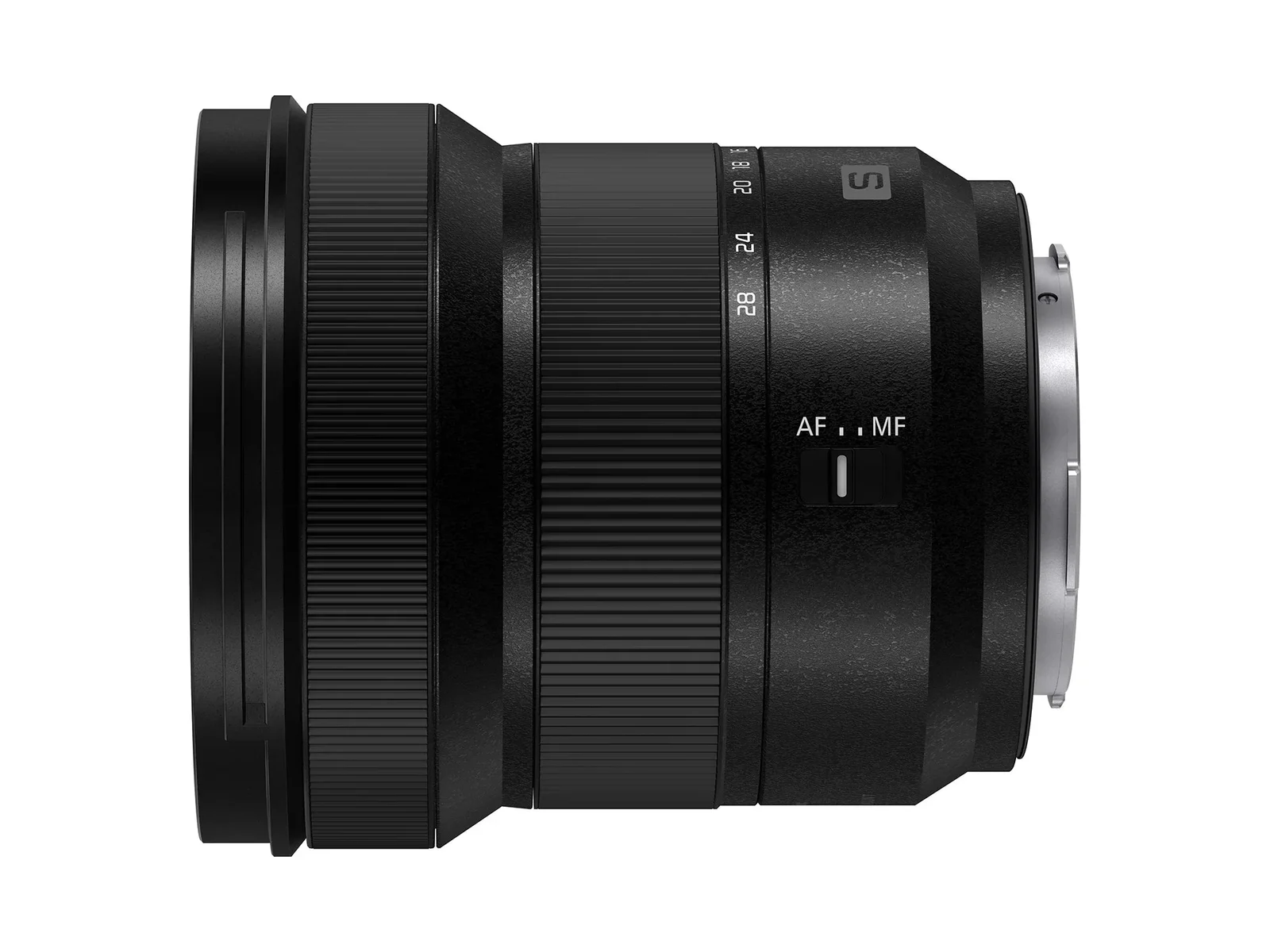

A light ultra-wide zoom for landscapes, architecture, travel and handheld video. It weighs 345g, keeps the same 89.8mm length at every focal length and is sized to match the LUMIX S 20-60mm, so it can sit on a gimbal without rebalancing. It takes 77mm filters.
The 14-element optic includes an aspherical ED element, an aspherical element, three ED and one UHR element. Focus is by a stepping motor with inner focusing. It focuses to 0.15m and reaches 0.5x at 28mm, which is unusual for an ultra-wide zoom. The seven-blade aperture closes to f/22. The barrel is dust, splash and freeze resistant with a fluorine-coated front element, and its only control is an AF/MF switch.
Reviewer consensus
Reviewers are pleasantly surprised by the optics for the money. Centre sharpness is high and consistent through the zoom range, and the edges hold up well at most settings; the main weak spot is the corners at the longer focal lengths, which need f/11 to sharpen fully. Colour fringing is almost absent, and vignetting at 14mm f/4 is mild. Autofocus is fast and practically silent, and the half-macro close focus adds real flexibility.
Raw files show strong barrel distortion at 14mm, so the lens relies on in-camera or software correction. The f/4-5.6 aperture is modest next to f/2.8 rivals, and the controls are basic: no aperture ring and just an AF/MF switch. Testers see it as excellent value with useful weather sealing.
Owner sentiment
Owner feedback will appear once we have verified real-world reports for this lens.
Strengths, weaknesses & performance
Strengths
- +Only 345g, constant 89.8mm length
- +0.5x magnification at 28mm
- +Sharp centre across the zoom range
- +Very low colour fringing
- +Weather sealed at a low price
Weaknesses
- −Slow f/4-5.6 aperture
- −Strong raw distortion at 14mm
- −Long-end corners need f/11
- −Minimal controls
Six-axis rating
- Sharpness
- 8.3
- Bokeh Rendering
- 7.4
- Autofocus Speed
- 8.6
- Flare Resistance
- —
- Build / Sealing
- 8.0
- Value / Size
- 9.0
Editorial 0–10 ratings synthesised from published reviews.
Technical specifications
| Mount | L-Mount (FF) · full frame |
|---|---|
| Focal length | 14–28mm |
| Category | Ultra-Wide |
| Maximum aperture | f/4–5.6 |
| Minimum aperture | f/22 |
| Construction | 14 elements in 10 groups |
| Special elements | 1x Aspherical ED · 1x Aspherical · 3x ED · 1x UHR · Fluorine Coating |
| Aperture blades | 7 |
| Focus type | Autofocus |
|---|---|
| Drive | Stepping Motor |
| Minimum focus | 0.15m |
| Max magnification | 0.50× |
| Stabilisation | None (uses body IBIS) |
| Teleconverters | Not supported |
| Weight | 345g |
|---|---|
| Diameter × length | 84.0 × 89.8mm |
| Filter thread | ⌀77mm |
| Weather sealing | Yes |
| Aperture ring | No |
| De-clickable aperture | No |
| Release year | 2023 |
| Launch MSRP | $798 USD |
Sources
Verified against the pages below. Specifications come from the maker; summaries only reflect reviews and owner reports we actually read.
Specifications
- panasonic.jp› dc/p-db/S-R1428_spec.html
- panasonic.jp› dc/products/S-R1428.html
- amateurphotographer.com› review/panasonic-lumix-s-14-28mm-f4-5-6-macro-review/
Launch price
- newsshooter.com› 2023/01/04/panasonic-s5-ii-s5-ii-x-announced-with-phase-hybr
Professional reviews
- digitalcameraworld.com› reviews/panasonic-lumix-s-14-28mm-f4-56-macro-review
- amateurphotographer.com› review/panasonic-lumix-s-14-28mm-f4-5-6-macro-review/
