Laowa 17mm f/4 Zero-D Tilt-Shift (Canon RF)
Launch MSRP
$1,249- Weight
- 810g
- Filter
- ⌀86mm
- Min focus
- 0.25m
- Max mag.
- 0.13×
- Formula
- 18E / 12G
- Released
- 2026
Specification sheet
Optical construction
- 2x Aspherical
- 4x ED
- 5x UHR
- Aperture range
- f/4 — f/22
Physical & ergonomics
- Weight
- 810g
- ⌀ × length
- 93.0 × 111.0mm
- Filter
- ⌀86mm
- Weather sealed
- No
- Aperture ring
- Yes
Autofocus actuator
- Stabilisation
- Body IBIS
- Teleconverter
- Not supported
- AF speed score
- —
Close-up performance
- Min focus distance
- 0.25m
- Max magnification
- 0.13× (1:7.6)
Optical character

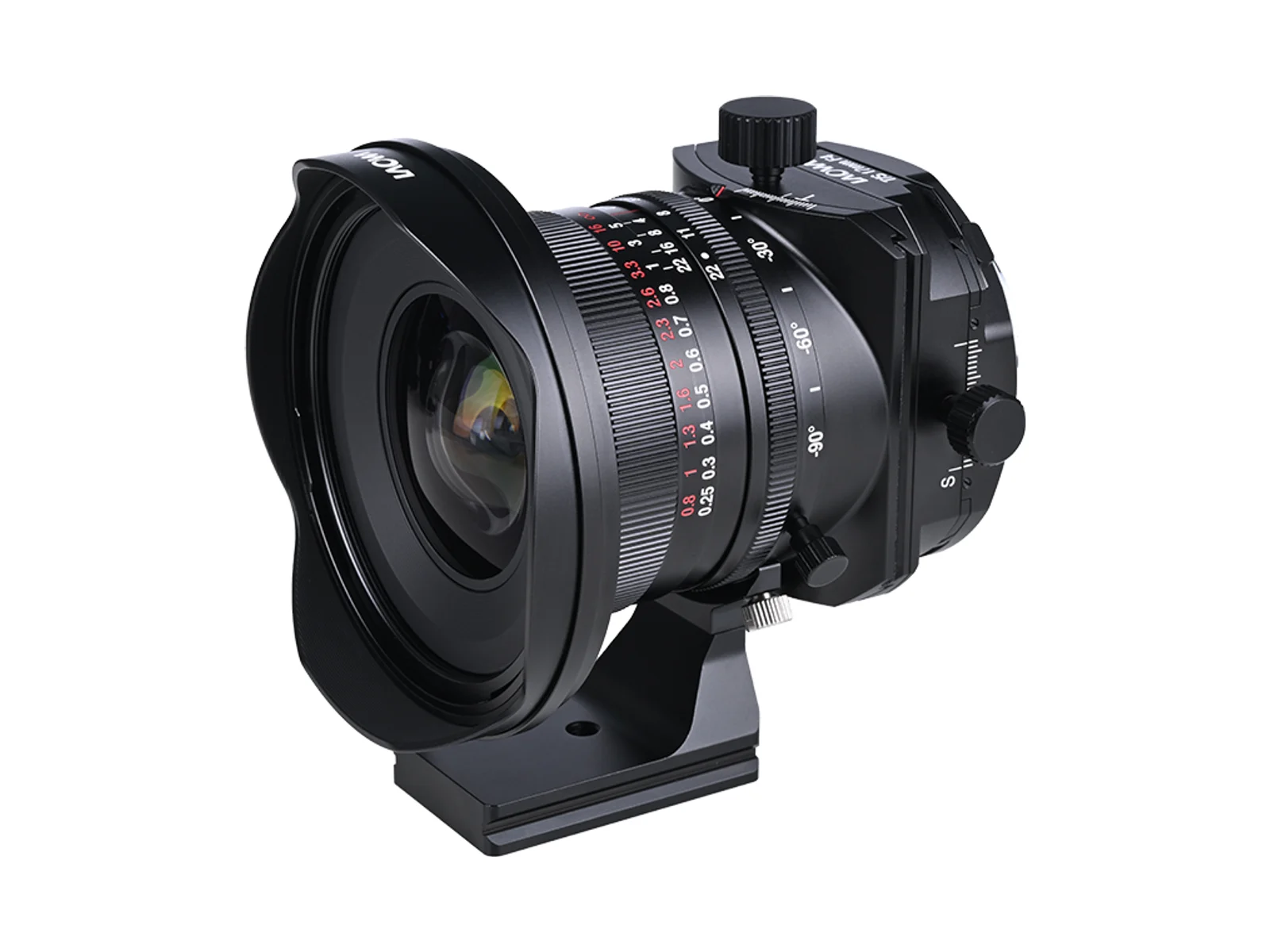

The 17mm f/4 is Laowa's ultra-wide with both ±10° tilt and ±12mm shift, built for architecture and interiors on full-frame mirrorless. Its image circle also covers medium format, and the mount rotates 360° with clicks every 15°, so you can shift in any direction or stitch shifted frames into a panorama.
It is a Zero-D design with near-zero distortion, and unlike other tilt-shift lenses this wide it takes standard 86mm screw-in filters. An Arca-Swiss compatible foot on a rotating collar is included, and the 14-blade aperture gives rounded highlights and soft 14-point stars. It is fully mechanical, with no electronic contacts, so there is no EXIF or camera aperture control.
Reviewer consensus
We summarise professional reviews only after reading at least two independent ones. Not enough have been published or verified for this lens yet.
Owner sentiment
Owner feedback will appear once we have verified real-world reports for this lens.
Strengths, weaknesses & performance
Strengths
- +±10° tilt and ±12mm shift
- +Near-zero distortion
- +86mm screw-in filter thread
- +Arca-Swiss foot, 360° rotation in 15° steps
- +Image circle covers medium format
Weaknesses
- −Prone to ghosting into the light
- −Shifted corners need f/8 or smaller
- −Abrupt locks and weak fine-adjust gears
- −No electronic contacts
Six-axis rating
Ratings are published once at least two independent professional reviews have been read.
Technical specifications
| Mount | Canon RF · full frame |
|---|---|
| Focal length | 17mm |
| Category | Ultra-Wide |
| Maximum aperture | f/4 |
| Minimum aperture | f/22 |
| Construction | 18 elements in 12 groups |
| Special elements | 2x Aspherical · 4x ED · 5x UHR |
| Aperture blades | 14 |
| Focus type | Manual Focus |
|---|---|
| Drive | Manual Helicoid |
| Minimum focus | 0.25m |
| Max magnification | 0.13× |
| Stabilisation | None (uses body IBIS) |
| Teleconverters | Not supported |
| Weight | 810g |
|---|---|
| Diameter × length | 93.0 × 111.0mm |
| Filter thread | ⌀86mm |
| Weather sealing | No |
| Aperture ring | Yes |
| De-clickable aperture | No |
| Release year | 2026 |
| Launch MSRP | $1,249 USD |
