Register/L-Mount/Laowa/Ultra-Wide

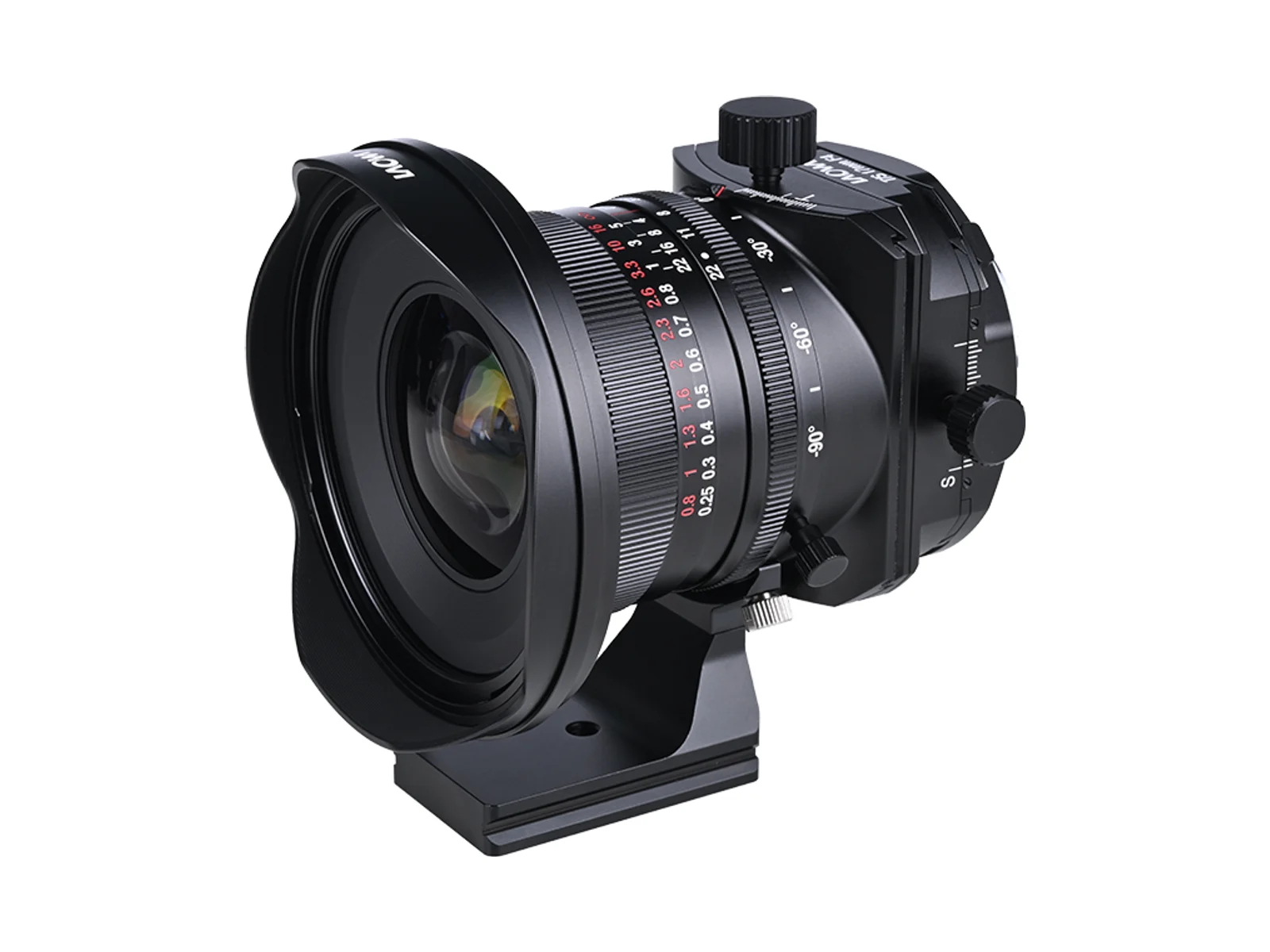

Laowa 17mm f/4 Zero-D Tilt-Shift (L-Mount) — Front view with hood, TS 17mm F4 (mount not identified)
Front view with hood, TS 17mm F4 (mount not identified)© Venus Optics (LAOWA)
LaowaZero-D

Laowa 17mm f/4 Zero-D Tilt-Shift (L-Mount)

L · PRIME
17mm
APERTURE
1:4
MFRING

Launch MSRP

$1,249
Weight
810g
Filter
⌀86mm
Min focus
0.25m
Max mag.
0.13×
Formula
18E / 12G
Released
2026

Also made for

  • Sony E-mount810g
  • Nikon Z-mount≈810g
  • Canon RF-mount810g
AlternativesCompare with…
01

Specification sheet

Optical construction

18
Elements
12
Groups
4 LD · 2 ASPH
14 rounded blades
  • 2x Aspherical
  • 4x ED
  • 5x UHR
Aperture range
f/4 — f/22

Physical & ergonomics

16842ZERO-D
Weight
810g
⌀ × length
93.0 × 111.0mm
Filter
⌀86mm
Weather sealed
No
Aperture ring
Yes

Autofocus actuator

Manual Helicoid
Manual Focus
Stabilisation
Body IBIS
Teleconverter
Not supported
AF speed score
—

Close-up performance

Min focus distance
0.25m
Max magnification
0.13× (1:7.6)
0.13×
0×0.25×0.5× half macro1.0× macro
02

Optical character

The 17mm f/4 is Laowa's ultra-wide with both ±10° tilt and ±12mm shift, built for architecture and interiors. Its image circle also covers medium format, and the mount rotates 360° with clicks every 15°, so you can shift in any direction or stitch shifted frames into a panorama.

It is a Zero-D design with 18 elements in 12 groups, including four ED, two aspherical and five high-refraction elements, and unlike most tilt-shift lenses this wide it takes standard 86mm screw-in filters. A tripod collar with an Arca-Swiss compatible foot is included, and the 14-blade aperture gives 14-point sunstars. It is fully mechanical, with no electronic contacts. Check your body first: Laowa says the L-mount version cannot be mounted on the Lumix S5II, S5IIX, S1II, S1RII or S1IIE, because their cooling housings get in the way of the shift mechanism; Leica and Sigma bodies and the earlier Lumix S1, S1R, S1H, S5 and S9 are listed as compatible.

Reviewer consensus

We summarise professional reviews only after reading at least two independent ones. Not enough have been published or verified for this lens yet.

Owner sentiment

Owner feedback will appear once we have verified real-world reports for this lens.

03

Strengths, weaknesses & performance

Strengths

  • +±10° tilt and ±12mm shift
  • +Near-zero distortion by design
  • +86mm screw-in filter thread
  • +Arca-Swiss foot, 360° rotation in 15° steps
  • +Image circle covers medium format

Weaknesses

  • −Does not fit Lumix S5II/S5IIX/S1II/S1RII/S1IIE
  • −Prone to ghosting into the light
  • −Shifted corners need f/8 or smaller
  • −No electronic contacts

Six-axis rating

Ratings are published once at least two independent professional reviews have been read.

04

Technical specifications

Optics
MountL-Mount (FF) · full frame
Focal length17mm
CategoryUltra-Wide
Maximum aperturef/4
Minimum aperturef/22
Construction18 elements in 12 groups
Special elements2x Aspherical · 4x ED · 5x UHR
Aperture blades14
Focus
Focus typeManual Focus
DriveManual Helicoid
Minimum focus0.25m
Max magnification0.13×
StabilisationNone (uses body IBIS)
TeleconvertersNot supported
Body
Weight810g
Diameter × length93.0 × 111.0mm
Filter thread⌀86mm
Weather sealingNo
Aperture ringYes
De-clickable apertureNo
Release year2026
Launch MSRP$1,249 USD
05

Sources

Verified 2026-10-25 against the pages below. Specifications come from the maker; summaries only reflect reviews and owner reports we actually read.

Specifications

  • laowa.jp› cat1/17mmf4-ts.html
  • laowa.de› 17mm-f-4-zero-d-tilt-shift/
  • laowalens.com› camera-lens-92

Launch price

  • newsshooter.com› 2026/03/10/laowa-17mm-f-4-zero-d-tilt-shift-shift-lenses/

Professional reviews

  • phillipreeve.net› blog/review-laowa-ff-ts-17mm-f-4-c-dreamer/
