Canon RF 16mm F2.8 STM
Launch MSRP
$299- Weight
- 165g
- Filter
- ⌀43mm
- Min focus
- 0.13m
- Max mag.
- 0.26×
- Formula
- 9E / 7G
- Released
- 2021
Specification sheet
Optical construction
- 1x Aspherical
- Aperture range
- f/2.8 — f/22
Physical & ergonomics
- Weight
- 165g
- ⌀ × length
- 69.2 × 40.2mm
- Filter
- ⌀43mm
- Weather sealed
- No
- Aperture ring
- No
Autofocus actuator
- Stabilisation
- Body IBIS
- Teleconverter
- Not supported
- AF speed score
- 7.6 / 10
Close-up performance
- Min focus distance
- 0.13m
- Max magnification
- 0.26× (1:3.8)
Optical character
A strikingly small and cheap full-frame ultra-wide: a 165g, 40.2mm-long 16mm f/2.8 that shares its chassis and 43mm filter size with the RF 50mm f/1.8 STM. It suits travel, vlogging, interiors and casual night-sky shooting on R bodies, and also works as a roughly 26mm-equivalent prime on APS-C RF cameras.

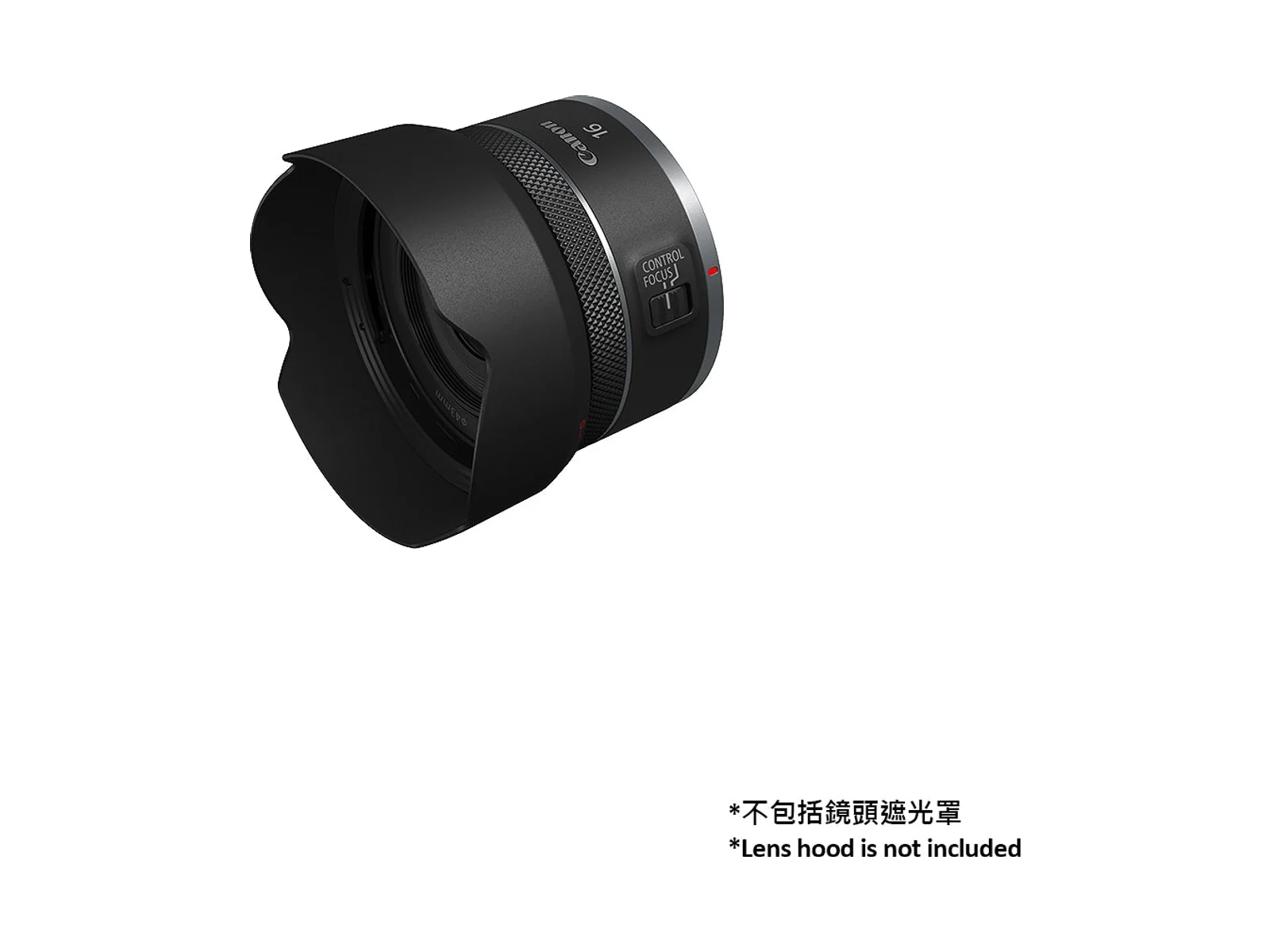

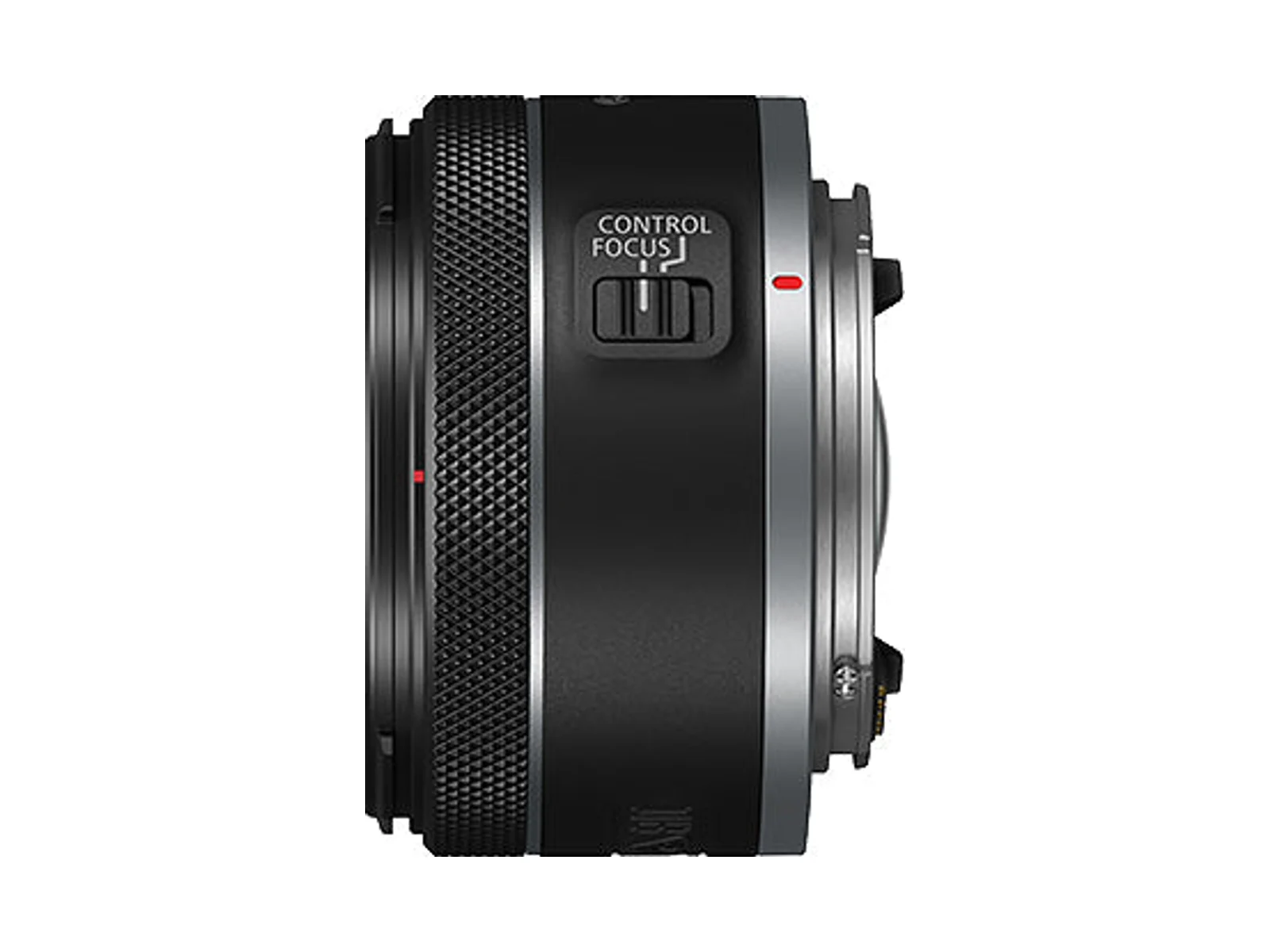

The 9-element, 7-group design has a single aspherical element and leans heavily on in-camera digital correction for distortion and vignetting. Close focus is 0.13m for 0.26x magnification. A gear-type STM drives focus, one ring switches between focus and control functions, there is no IS or weather sealing, and the EW-65C hood is optional.
Reviewer consensus
Reviewers agree the centre is sharp, but disagree on the edges. On a 45MP body one test found the borders only acceptable and the corners mushy at f/2.8, improving little on stopping down because the distortion correction stretches the outer field; on 20-30MP bodies the results were much better. Another lab test found sharpness very good over most of the frame from f/2.8 and into the corners by f/5.6, though it rated centre sharpness a little below other RF lenses.
Uncorrected files show close to 10% barrel distortion and near-black corners, so correction is effectively mandatory; with it applied, distortion and vignetting are well handled. Lateral fringing is either low or easily corrected. Autofocus is quick, with a quiet high-pitched sound. Both reviews call it outstanding value and note the lack of weather sealing and the optional hood.
Owner sentiment
Owners like how small, light and cheap it is, and many keep it in the bag as a spare ultra-wide or use it for starscapes, travel and snaps with children and pets. The 0.13m close focus gets frequent praise, and some use it on APS-C bodies as a compact everyday prime.
The common complaints are soft corners and heavy vignetting that need correction, distortion that remains visible with straight lines near the edges, the expensive optional hood and the small 43mm filter thread. Several say it does not match L or Art lenses but is more than good enough for the money.
Strengths, weaknesses & performance
Strengths
- +Tiny and light (165g, 40.2mm)
- +Very low price
- +0.13m close focus, 0.26x magnification
- +f/2.8 for night and indoor shooting
Weaknesses
- −Soft corners on high-resolution bodies
- −Near 10% raw distortion, relies on correction
- −No IS or weather sealing
- −Hood sold separately
Six-axis rating
- Sharpness
- 6.8
- Bokeh Rendering
- 6.8
- Autofocus Speed
- 7.6
- Flare Resistance
- 7.0
- Build / Sealing
- 6.8
- Value / Size
- 9.2
Editorial 0–10 ratings synthesised from published reviews.
Technical specifications
| Mount | Canon RF · full frame |
|---|---|
| Focal length | 16mm |
| Category | Ultra-Wide |
| Maximum aperture | f/2.8 |
| Minimum aperture | f/22 |
| Construction | 9 elements in 7 groups |
| Special elements | 1x Aspherical |
| Aperture blades | 7 |
| Focus type | Autofocus |
|---|---|
| Drive | STM (gear-type) |
| Minimum focus | 0.13m |
| Max magnification | 0.26× |
| Stabilisation | None (uses body IBIS) |
| Teleconverters | Not supported |
| Weight | 165g |
|---|---|
| Diameter × length | 69.2 × 40.2mm |
| Filter thread | ⌀43mm |
| Weather sealing | No |
| Aperture ring | No |
| De-clickable aperture | No |
| Release year | 2021 |
| Launch MSRP | $299 USD |
Sources
Verified against the pages below. Specifications come from the manufacturer; summaries only reflect reviews and owner reports we actually read.
Specifications
- canon.com.cn/product/rf16f28/spec.html
- canon.com.cn/product/rf16f28/
- global.canon/en/c-museum/product/rf510.html
Launch price
- canonrumors.com/canon-officially-announces-the-rf-16mm-f-2-8-stm-and-rf-100
Professional reviews
- opticallimits.com/canon/canon-rf/canon-rf-16mm-f-2-8-stm/
- digitalcameraworld.com/reviews/canon-rf-16mm-f28-stm-review
Owner reports
- review.kakaku.com/review/K0001383774/
