Register/Nikon Z-mount/Viltrox/Wide

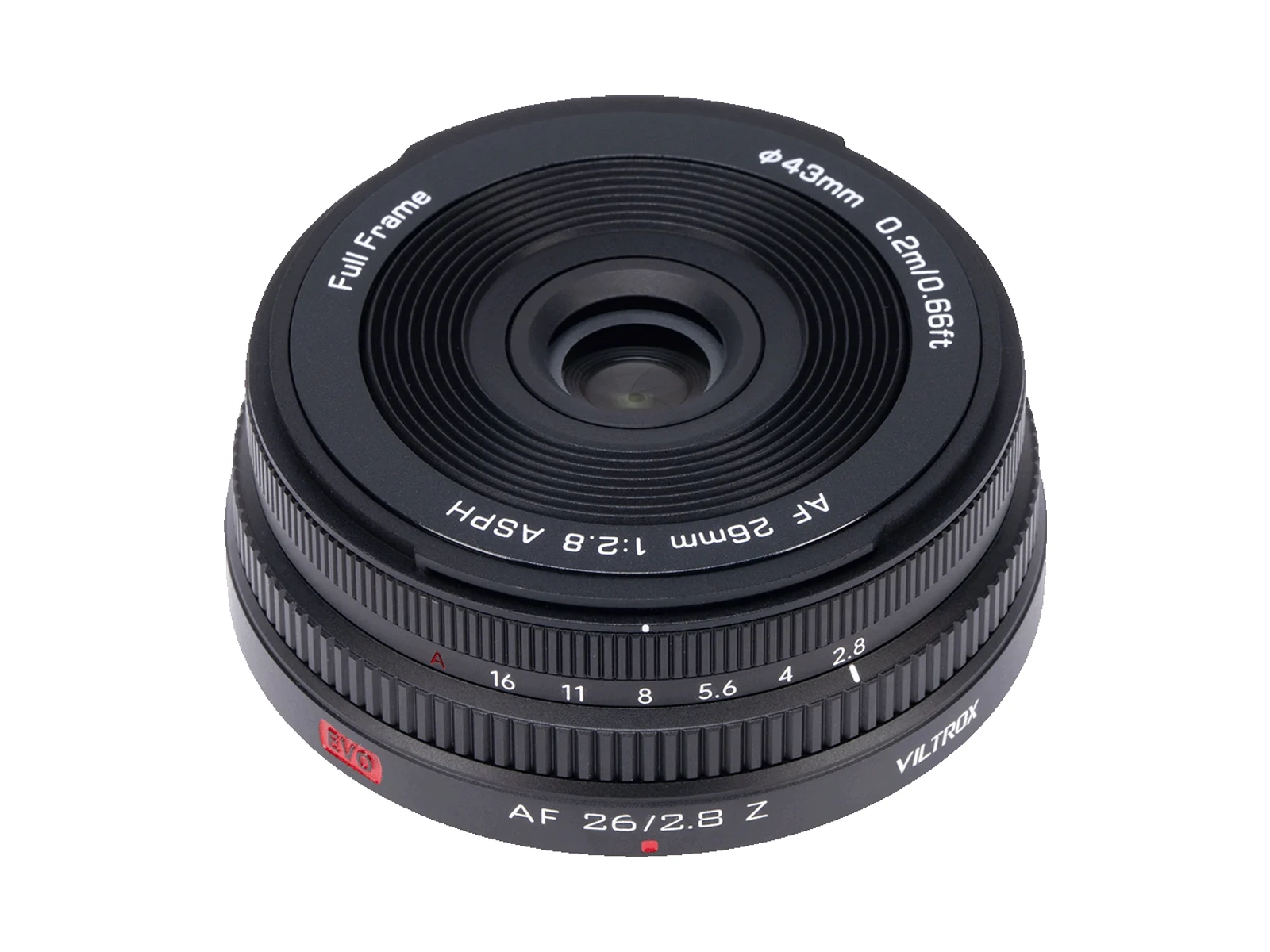

Viltrox AF 26mm F2.8 EVO Z — Three-quarter front view
Three-quarter front view© VILTROX
ViltroxEVO

Viltrox AF 26mm F2.8 EVO Z

Z · PRIME
26mm
APERTURE
1:2.8
AFRING

Launch MSRP

$299
Weight
170g
Filter
⌀43mm
Min focus
0.20m
Max mag.
0.20×
Formula
8E / 6G
Released
2026
AlternativesCompare with…
01

Specification sheet

Optical construction

8
Elements
6
Groups
0 LD · 2 ASPH
7 rounded blades
  • 2x Aspherical
  • 1x HR
Aperture range
f/2.8 — f/16

Physical & ergonomics

16842EVO
Weight
170g
⌀ × length
69.4 × 25.8mm
Filter
⌀43mm
Weather sealed
No
Aperture ring
Yes

Autofocus actuator

STM (Gear Type)
Autofocus
Stabilisation
Body IBIS
Teleconverter
Not supported
AF speed score
6.8 / 10

Close-up performance

Min focus distance
0.20m
Max magnification
0.20× (1:5.0)
0.20×
0×0.25×0.5× half macro1.0× macro
02

Optical character

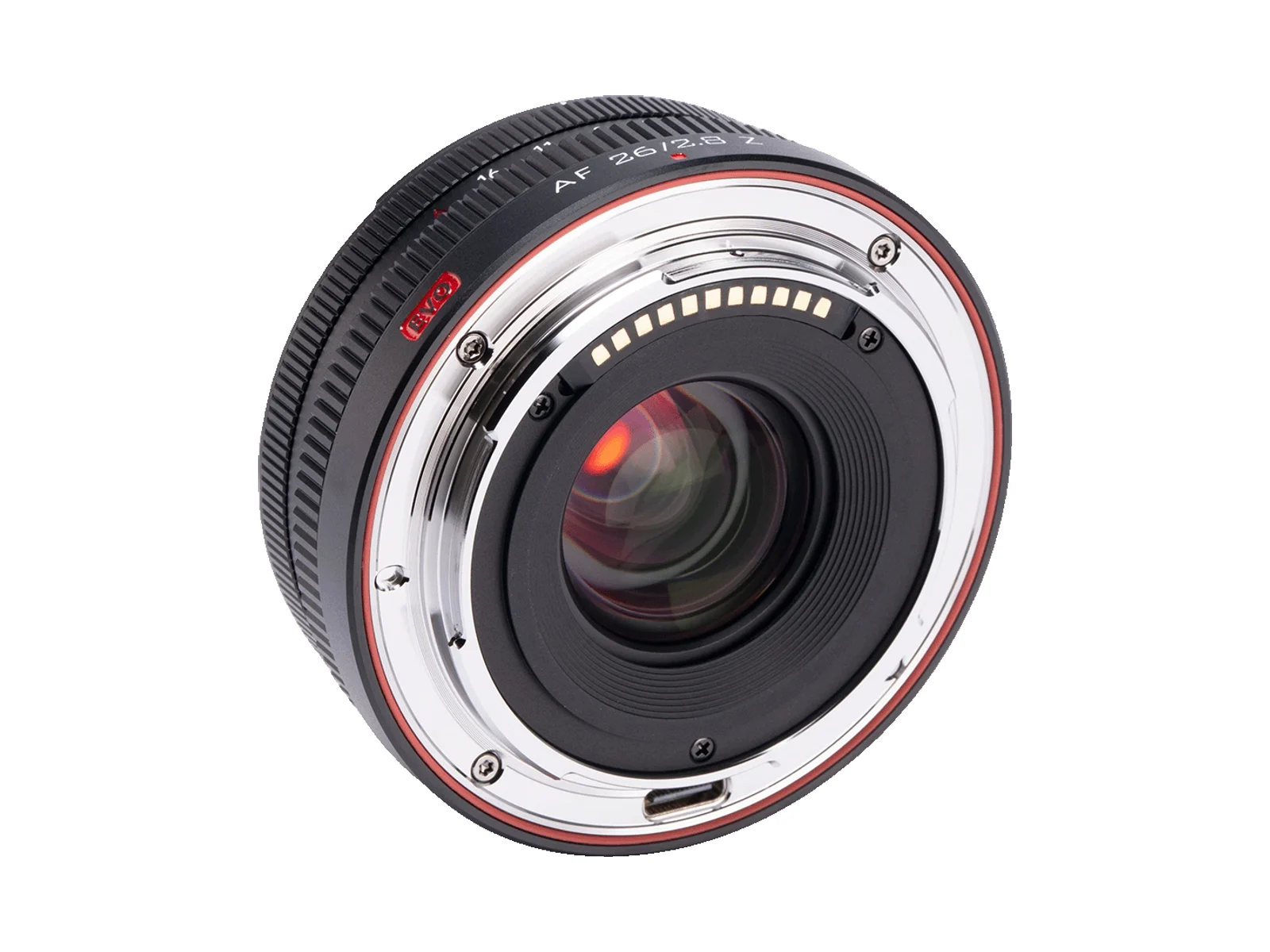

A full-frame autofocus pancake 25.8mm thick and about 170g in Z mount, small enough that it barely protrudes past the grip of most Nikon Z bodies and suits the retro Zf and Zfc. Unlike most pancakes, it has both a real aperture ring and a separate focus ring. It also has an all-metal shell, a USB-C firmware port and a magnetic front cap.

The 8-element, 6-group design with two aspherical elements and one high-refractive element is sharp in the centre from f/2.8. The corners improve when stopped down. It focuses to 0.2m for close detail shots. The 43mm filter thread is on the supplied round hood rather than the lens itself, and the silver and graphite versions come with a square hood instead.

Reviewer consensus

Testers call it one of the first full-frame pancakes without serious optical compromises. Contrast and resolution are high across most of the frame at f/2.8, only the extreme corners need stopping down, and peak results come at f/5.6–f/8. Close-range performance at 0.2m is very good. Lateral and longitudinal CA are low, bokeh is smooth for a slow wide, and flare is much better controlled than on Viltrox's earlier 28mm pancake.

The compromises are the ones a pancake usually makes. Vignetting is close to 3 EV wide open, and barrel distortion needs correction, which the lens profile handles in JPEGs on Z bodies. Veiling flare at f/2.8 remains the main optical weakness. The geared STM is adequate for AF-S but slow and grindy in AF-C, can land slightly off in low light, and the focus ring is small and stiff.

Owner sentiment

Owners like how small it is on bodies such as the Zf and Z6III, and many call it sharp for its size and well built for the price. The colour editions with the square hood are popular for their looks.

The quirks owners mention are mechanical. AF can feel slow and you can hear the gear motor. The aperture ring turns in the opposite direction from Nikon's own lenses and cannot be declicked, there is no AF/MF switch, and filters only fit on the round hood.

03

Strengths, weaknesses & performance

Strengths

  • +Tiny 170g, 25.8mm full-frame pancake
  • +Sharp across most of the frame at f/2.8
  • +Aperture ring plus a separate focus ring
  • +0.2m close focus (0.2x)
  • +All-metal build at $299

Weaknesses

  • −Veiling flare wide open
  • −Heavy vignetting (about 3 EV at f/2.8)
  • −Geared STM is slow in AF-C and audible
  • −Aperture ring turns opposite to Nikon lenses
  • −Filters only via the round hood

Six-axis rating

SHARPBOKEHAFFLAREBUILDVALUE
Sharpness
8.4
Bokeh Rendering
6.8
Autofocus Speed
6.8
Flare Resistance
6.3
Build / Sealing
8.3
Value / Size
9.2

Editorial 0–10 ratings synthesised from published reviews.

04

Technical specifications

Optics
MountNikon Z (FX) · full frame
Focal length26mm
CategoryWide
Maximum aperturef/2.8
Minimum aperturef/16
Construction8 elements in 6 groups
Special elements2x Aspherical · 1x HR
Aperture blades7
Focus
Focus typeAutofocus
DriveSTM (Gear Type)
Minimum focus0.20m
Max magnification0.20×
StabilisationNone (uses body IBIS)
TeleconvertersNot supported
Body
Weight170g
Diameter × length69.4 × 25.8mm
Filter thread⌀43mm
Weather sealingNo
Aperture ringYes
De-clickable apertureNo
Release year2026
Launch MSRP$299 USD
05

Sources

Specifications

  • viltrox.com/products/af-26mm-f2-8-z
  • viltrox.com/products/af-26mm-f2-8-z.json
  • nikonrumors.com/2026/07/15/viltrox-26mm-f-2-8-evo-pancake-lens-for-nikon-z-
  • nikonrumors.com/2026/07/17/first-look-viltrox-26mm-f-2-8-evo-pancake-lens-f
  • phillipreeve.net/blog/review-viltrox-af-26mm-2-8-evo/
