Register/Nikon Z-mount/Tamron/Wide

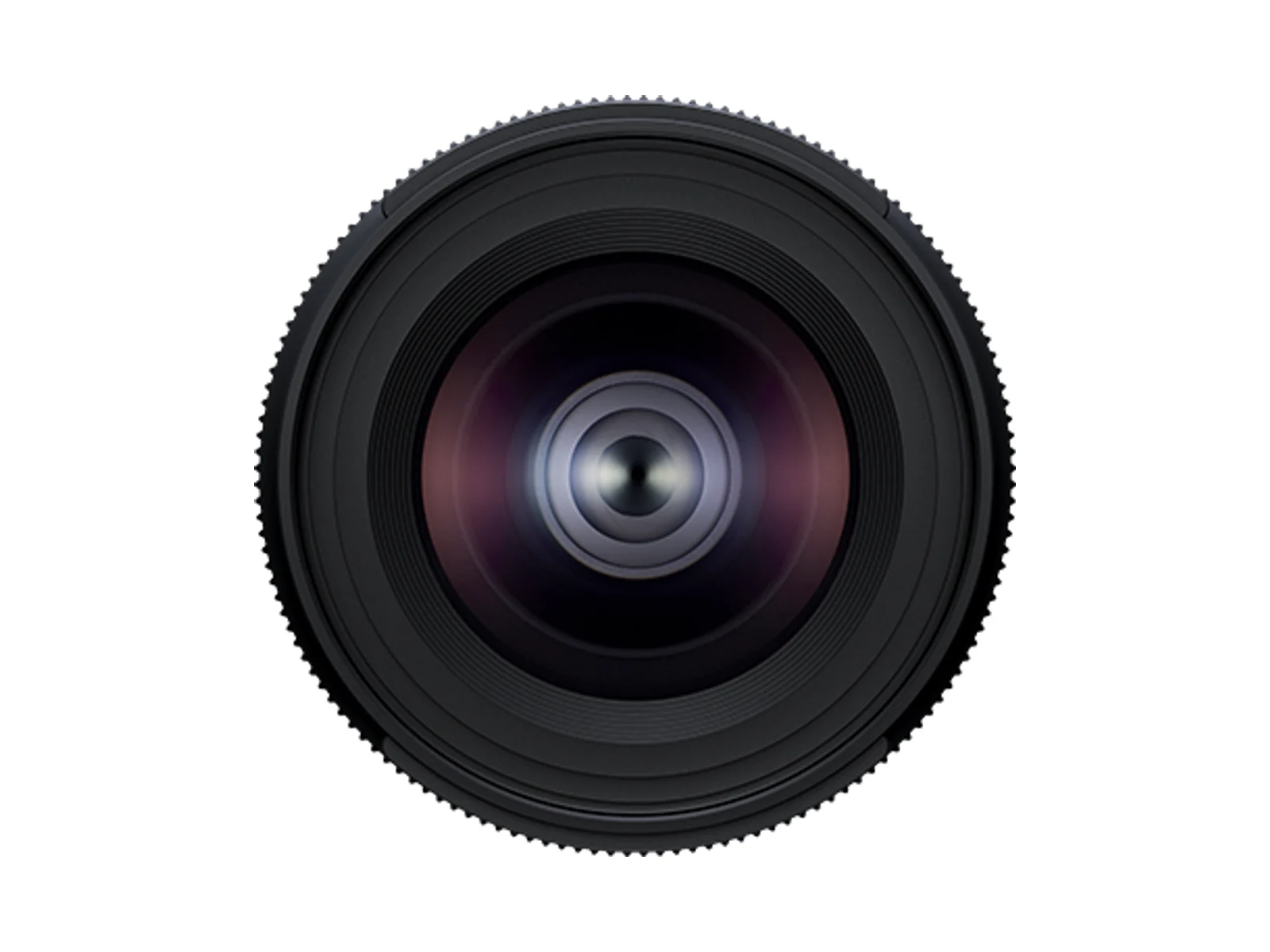

Tamron 20-40mm F/2.8 Di III VXD (Nikon Z) — Product view (Nikon Z)
Product view (Nikon Z)© TAMRON
TamronDi III VXD

Tamron 20-40mm F/2.8 Di III VXD (Nikon Z)

Z · ZOOM
20-40mm
APERTURE
1:2.8
AFWR

Launch MSRP

$729
Weight
380g
Filter
⌀67mm
Min focus
0.17m
Max mag.
0.26×
Formula
12E / 11G
Released
2026
AlternativesCompare with…
01

Specification sheet

Optical construction

12
Elements
11
Groups
4 LD · 3 ASPH
9 rounded blades
  • 4x LD
  • 2x GM
  • 1x Hybrid Aspherical
  • BBAR-G2 Coating
  • Fluorine Coating
Aperture range
f/2.8 — f/22

Physical & ergonomics

DI III VXD
Weight
380g
⌀ × length
74.4 × 88.7mm
Filter
⌀67mm
Weather sealed
Yes
Aperture ring
No

Autofocus actuator

VXD Linear Motor
Autofocus
Stabilisation
Body IBIS
Teleconverter
Not supported
AF speed score
8.6 / 10

Close-up performance

Min focus distance
0.17m
Max magnification
0.26× (1:3.8)
0.26×
0×0.25×0.5× half macro1.0× macro
02

Optical character

Four years after the Sony version, Tamron's 20-40mm arrived on Nikon Z as one of the smallest constant f/2.8 zooms for the system: 380g and 88.7mm long. Tamron chose a 20-40mm range instead of the usual 24-70mm. It covers ultra-wide street and interior shots up to a natural 40mm, so on a Z5 II or Z6 III it can stand in for a bag of small primes for travel and vlogging.

The optics are unchanged: four LD, two GM and a hybrid aspherical element, with BBAR-G2 coating against flare. The VXD linear motor is fast and quiet and supports Nikon's Eye AF and M/A focus override. Close focus is 0.17m at 20mm, the zoom ring needs only 65° of rotation, and a USB-C port supports TAMRON Lens Utility. It shares the 67mm filter size with most Tamron mirrorless lenses.

Reviewer consensus

Reviews of the optically identical Sony version found it sharp across most of the frame from f/2.8, with especially strong results at 20mm and a slight dip in the corners at 40mm wide open. Chromatic aberration is low. Distortion and vignetting rely on correction, which Nikon bodies apply in camera for this lens.

AF is quick, quiet and dependable for video. Testers noted the extending barrel, the lack of switches or a custom button, and the narrow range compared with a 24-70. Most still saw it as a very good value that does something no first-party lens does, and on Nikon Z it undercuts the NIKKOR Z 24-70mm f/2.8 S on size by a wide margin.

Owner sentiment

The Nikon Z version had only just reached shops at the time of writing, so owner feedback comes mostly from Sony users of the same optics. They describe it as a lens that stays on the camera for travel, street and family use, and like how pocketable a 20mm f/2.8 setup becomes. Vloggers value the 20mm end and the light weight on gimbals and grips.

Complaints are mostly about range: 40mm is short for portraits. Some miss an AF/MF switch, and a few report the zoom ring being stiff when new. The barrel grows by about 1cm when zooming toward 20mm.

03

Strengths, weaknesses & performance

Strengths

  • +380g, 88.7mm long for a constant f/2.8 zoom
  • +Sharp across the frame, especially at 20mm
  • +Fast, quiet VXD AF with Eye AF and M/A
  • +0.17m close focus at 20mm
  • +67mm filters, moisture resistant

Weaknesses

  • −Range stops at 40mm
  • −Barrel extends when zooming
  • −No AF/MF switch or function button

Six-axis rating

SHARPBOKEHAFFLAREBUILDVALUE
Sharpness
8.6
Bokeh Rendering
7.5
Autofocus Speed
8.6
Flare Resistance
8.1
Build / Sealing
8.1
Value / Size
9.0

Editorial 0–10 ratings synthesised from published reviews.

04

Technical specifications

Optics
MountNikon Z (FX) · full frame
Focal length20–40mm
CategoryWide
Maximum aperturef/2.8
Minimum aperturef/22
Construction12 elements in 11 groups
Special elements4x LD · 2x GM · 1x Hybrid Aspherical · BBAR-G2 Coating · Fluorine Coating
Aperture blades9
Focus
Focus typeAutofocus
DriveVXD Linear Motor
Minimum focus0.17m
Max magnification0.26×
StabilisationNone (uses body IBIS)
TeleconvertersNot supported
Body
Weight380g
Diameter × length74.4 × 88.7mm
Filter thread⌀67mm
Weather sealingYes
Aperture ringNo
De-clickable apertureNo
Release year2026
Launch MSRP$729 USD
05

Sources

Specifications

  • tamron.com/global/consumer/lenses/a062/spec.html
  • tamron.com/global/consumer/news/detail/a062z_20261008.html
  • tamron.com/global/consumer/lenses/a062/
  • photographyblog.com/reviews/tamron_20_40mm_f2_8_di_iii_vxd_review
  • dpreview.com/news/tamron-20-40mm-2p8-comes-to-z-mount-nikon-shooters/
