Register/Sony E-mount/Voigtländer/Ultra-Wide

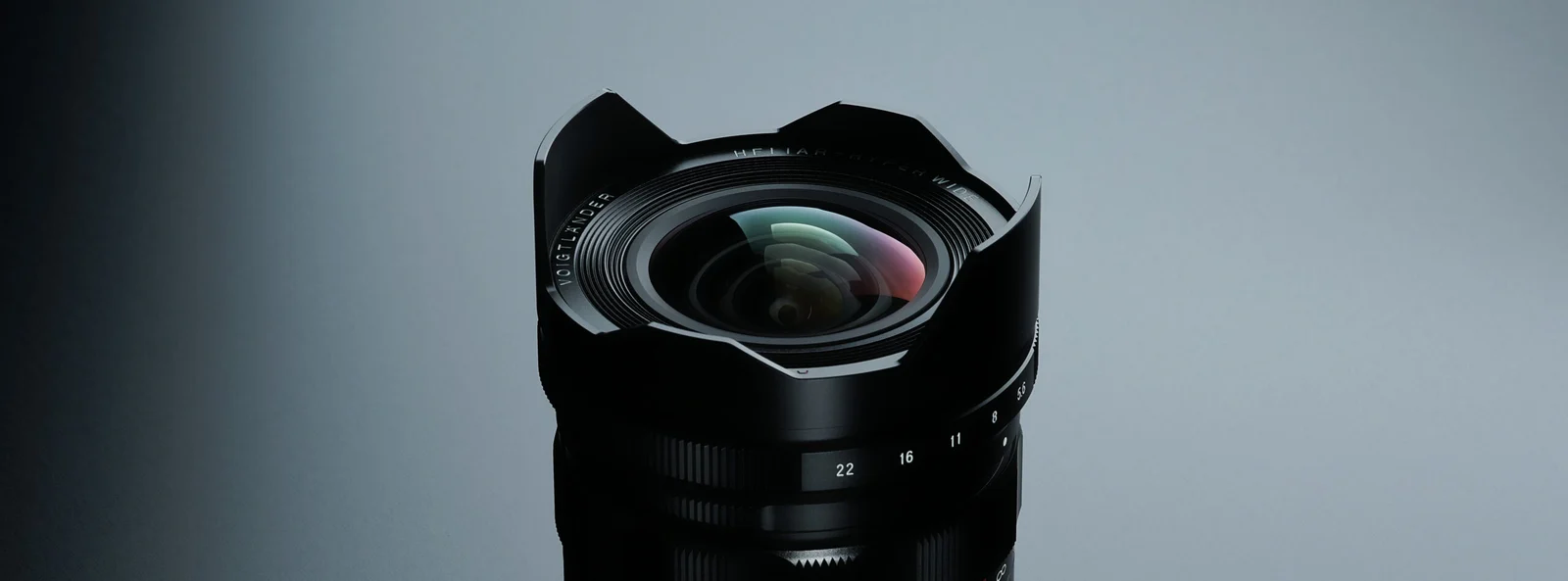

Voigtlander Heliar-Hyper Wide 10mm F5.6 Aspherical — Studio view
Studio view© COSINA
VoigtlanderHeliar

Voigtlander Heliar-Hyper Wide 10mm F5.6 Aspherical

FE · PRIME
10mm
APERTURE
1:5.6
MFRING·DC

Launch MSRP

$1,099
Weight
375g
Filter
—
Min focus
0.30m
Max mag.
0.04×
Formula
13E / 10G
Released
2016
AlternativesCompare with…
01

Specification sheet

Optical construction

13
Elements
10
Groups
3 LD · 2 ASPH
10 rounded blades
  • 2x Aspherical
  • 3x APD
Aperture range
f/5.6 — f/22

Physical & ergonomics

16842HELIAR
Weight
375g
⌀ × length
67.4 × 68.5mm
Filter
—
Weather sealed
No
Aperture ring
Yes · de-click

Autofocus actuator

Manual Helicoid
Manual Focus
Stabilisation
Body IBIS
Teleconverter
Not supported
AF speed score
—

Close-up performance

Min focus distance
0.30m
Max magnification
0.04× (1:22.7)
0.04×
0×0.25×0.5× half macro1.0× macro
02

Optical character

Cosina built the 10mm Heliar-Hyper Wide to be the widest rectilinear full-frame lens you can buy, with a 130° angle of view and straight lines that stay straight. Two aspherical elements and three anomalous partial-dispersion elements keep distortion close to zero without leaning on software correction.

It is a compact all-metal manual-focus lens with a fixed petal hood and no front filter thread. Electronic contacts pass EXIF, trigger focus magnification and feed distance data to in-body stabilisation, and at f/5.6 nearly everything from a metre to infinity is in focus, so most of the time you set it and shoot.

Reviewer consensus

Testers agree that the centre is sharp from f/5.6 and that the edges and extreme corners need f/11 to f/16 to catch up, which is a fair result for a 10mm with almost no distortion. Flare and ghosting are well controlled even with the sun in frame, and sunstars are clean.

The recurring weaknesses are heavy vignetting, around 2.5 stops in the corners wide open, and visible lateral colour at the frame edges. Both correct well in software, at the cost of some corner noise when lifting the vignette.

Owner sentiment

Owners use it for interiors, architecture, tight cityscapes and dramatic foreground-heavy landscapes, and many say nothing else gives them this view without fisheye curvature. The small size compared with zoom alternatives that reach 12mm is a regular point of praise.

The usual complaints are the lack of filter support, the dark corners, and how easily the integrated hood and bulbous front element pick up fingers and smudges. Some users find the f/5.6 maximum aperture limiting indoors on older bodies.

03

Strengths, weaknesses & performance

Strengths

  • +130° rectilinear view, widest of its kind
  • +Distortion almost nil
  • +Good flare control and crisp sunstars
  • +Compact 375g all-metal build
  • +Electronic contacts: EXIF, focus magnify, 5-axis IBIS

Weaknesses

  • −Heavy vignetting, ~2.5 EV in the corners
  • −Soft extreme corners until f/11
  • −No filter thread
  • −Visible lateral colour at the edges

Six-axis rating

SHARPBOKEHAFFLAREBUILDVALUE
Sharpness
7.6
Bokeh Rendering
5.0
Autofocus Speed
MF
Flare Resistance
8.4
Build / Sealing
8.8
Value / Size
7.8

Editorial 0–10 ratings synthesised from published reviews.

04

Technical specifications

Optics
MountSony E (FE) · full frame
Focal length10mm
CategoryUltra-Wide
Maximum aperturef/5.6
Minimum aperturef/22
Construction13 elements in 10 groups
Special elements2x Aspherical · 3x APD
Aperture blades10
Focus
Focus typeManual Focus
DriveManual Helicoid
Minimum focus0.30m
Max magnification0.04×
StabilisationNone (uses body IBIS)
TeleconvertersNot supported
Body
Weight375g
Diameter × length67.4 × 68.5mm
Filter threadNone
Weather sealingNo
Aperture ringYes
De-clickable apertureYes
Release year2016
Launch MSRP$1,099 USD
05

Sources

Specifications

  • cosina.co.jp/voigtlander/en/e-mount/heliar-hyper-wide-10mm-f5-6-aspheric
  • briansmith.com/voigtlander-manual-focus-e-mount-lenses
  • phillipreeve.net/blog/review-voigtlander-10mm-5-6-e-hyper-wide-heliar/
  • admiringlight.com/blog/review-voigtlander-10mm-f5-6-hyper-wide-heliar-sony-e-
  • mirrorlessons.com/2016/10/28/voigtlander-10mm-f5-6-hyper-wide-heliar-review-s
