Register/Sony E-mount/Samyang (Rokinon)/Wide

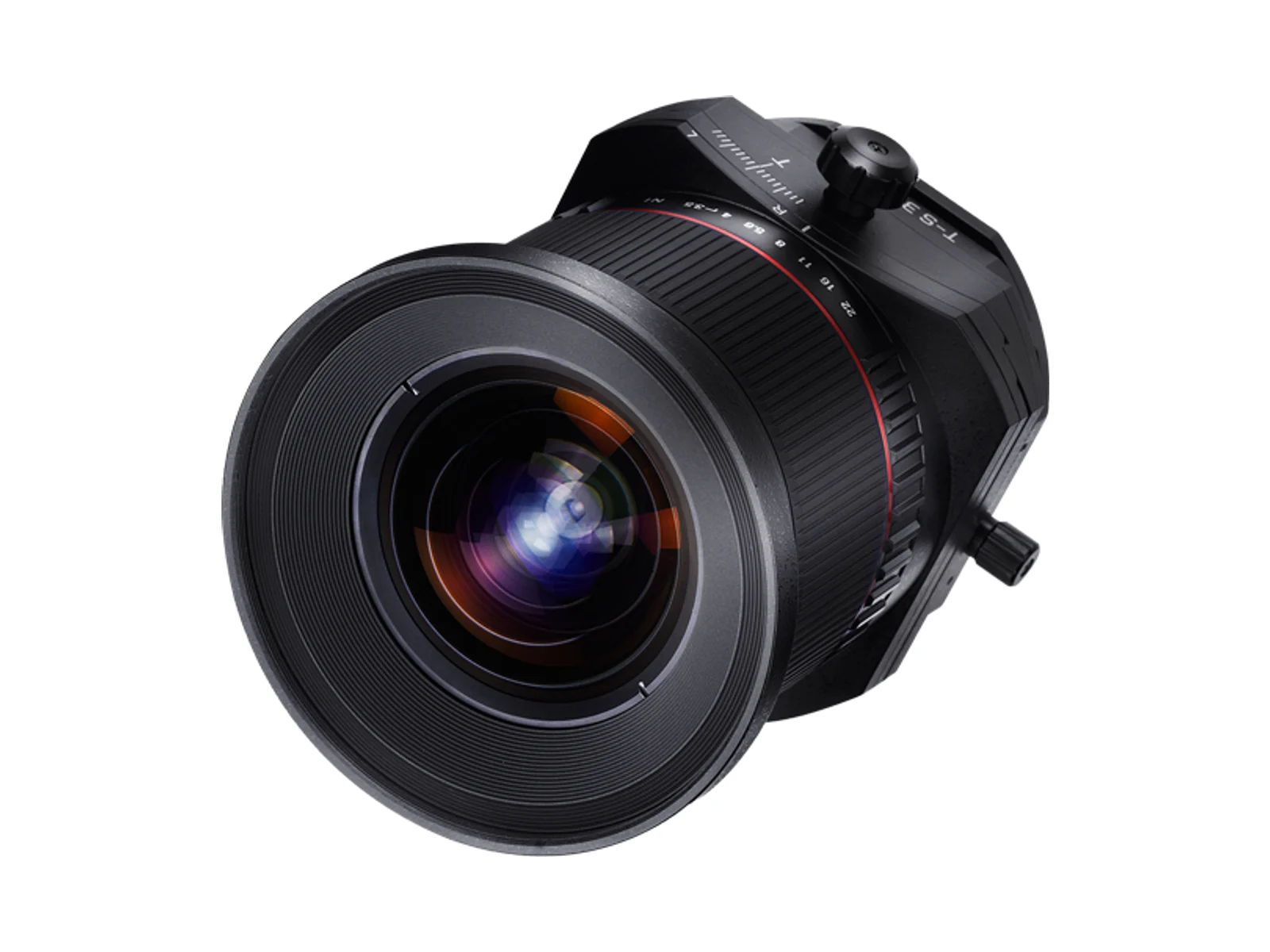

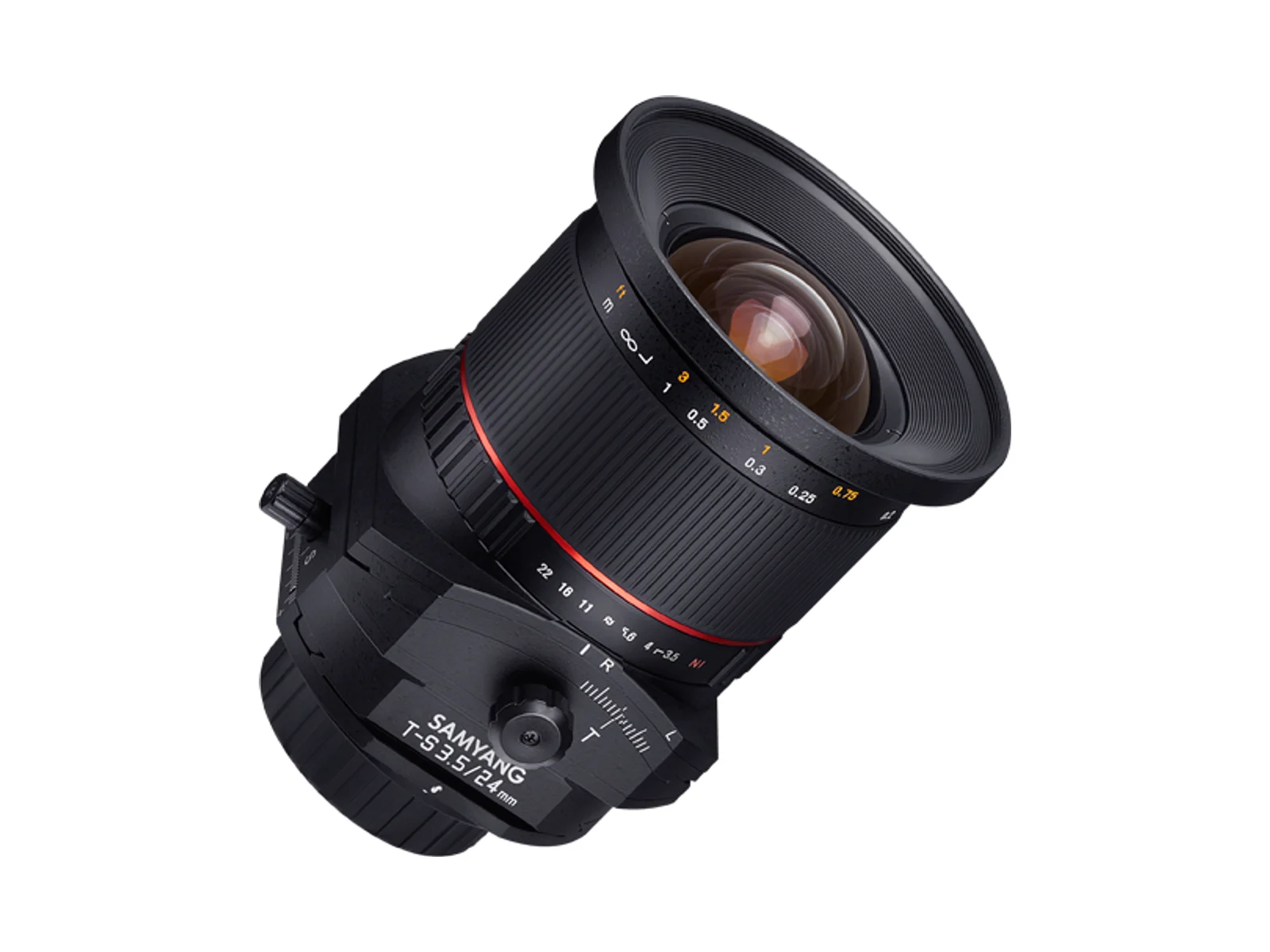

Samyang Tilt/Shift 24mm F3.5 ED AS UMC — Product view
Product view© LK Samyang
Samyang/Rokinon

Samyang Tilt/Shift 24mm F3.5 ED AS UMC

FE · PRIME
24mm
APERTURE
1:3.5
MFRING

Launch MSRP

$999
Weight
734g
Filter
⌀82mm
Min focus
0.20m
Max mag.
0.20×
Formula
16E / 11G
Released
2012
AlternativesCompare with…
01

Specification sheet

Optical construction

16
Elements
11
Groups
2 LD · 2 ASPH
6 rounded blades
  • 2x ED
  • 2x Aspherical
  • UMC
Aperture range
f/3.5 — f/22

Physical & ergonomics

16842
Weight
734g
⌀ × length
86.0 × 139.0mm
Filter
⌀82mm
Weather sealed
No
Aperture ring
Yes

Autofocus actuator

Manual Helicoid
Manual Focus
Stabilisation
Body IBIS
Teleconverter
Not supported
AF speed score
—

Close-up performance

Min focus distance
0.20m
Max magnification
0.20× (1:5.0)
0.20×
0×0.25×0.5× half macro1.0× macro
02

Optical character

This is the least expensive full-featured tilt-shift lens for full frame: ±8.5 degrees of tilt and ±12mm of shift, with the tilt and shift axes independently rotatable in 30-degree click steps. It lets architecture photographers keep verticals straight in camera and lets landscape and product shooters swing the plane of focus.

The optics, with two ED and two aspherical elements, are sharp in the centre and good at the edges even with movements applied, and colour fringing is very well controlled. It is entirely manual, including a stop-down aperture, and the Sony E version is the DSLR design with an adapter section, so it is long and heavy.

Reviewer consensus

Reviewers rate the optics highly for the money: very good central sharpness, good edges, excellent chromatic aberration control, moderate distortion and low vignetting without movements. Several conclude that it gets close to brand-name tilt-shift lenses optically at a fraction of the price.

The mechanics draw the criticism. Knobs and locks feel less precise than Canon or Nikon designs, early copies showed play and misaligned tilt zero points, and flare resistance against bright light is weak.

Owner sentiment

Architecture and real-estate shooters say it pays for itself quickly and that the shift alone justifies the purchase. On Sony bodies, live view with magnification makes accurate manual focus with tilt much easier than through a DSLR finder.

Complaints centre on build: stiff or loose knobs, tilt that does not sit exactly at zero on some copies, and a large 82mm front. The lack of contacts means no EXIF, and the aperture must be stopped down manually.

03

Strengths, weaknesses & performance

Strengths

  • +Full tilt and shift for a low price
  • +±12mm shift and ±8.5-degree tilt
  • +Excellent colour-fringe control
  • +Independent rotation of tilt and shift axes

Weaknesses

  • −Imprecise mechanics on some copies
  • −Weak flare resistance
  • −Long and heavy on Sony E (734g)
  • −Large 82mm filters

Six-axis rating

SHARPBOKEHAFFLAREBUILDVALUE
Sharpness
8.0
Bokeh Rendering
6.8
Autofocus Speed
MF
Flare Resistance
6.3
Build / Sealing
6.5
Value / Size
8.6

Editorial 0–10 ratings synthesised from published reviews.

04

Technical specifications

Optics
MountSony E (FE) · full frame
Focal length24mm
CategoryWide
Maximum aperturef/3.5
Minimum aperturef/22
Construction16 elements in 11 groups
Special elements2x ED · 2x Aspherical · UMC
Aperture blades6
Focus
Focus typeManual Focus
DriveManual Helicoid
Minimum focus0.20m
Max magnification0.20×
StabilisationNone (uses body IBIS)
TeleconvertersNot supported
Body
Weight734g
Diameter × length86.0 × 139.0mm
Filter thread⌀82mm
Weather sealingNo
Aperture ringYes
De-clickable apertureNo
Release year2012
Launch MSRP$999 USD
05

Sources

Specifications

  • lksamyang.com/en/product/product-view.php
  • rokinon.com/products/24mm-f3-5-full-frame-tilt-shift
  • lenstip.com/372.2-Lens_review-Samyang_T-S_24_mm_f_3.5_ED_AS_UMC_Picture
  • lenstip.com/372.11-Lens_review-Samyang_T-S_24_mm_f_3.5_ED_AS_UMC_Summar
