Register/Nikon Z-mount/Viltrox/Standard

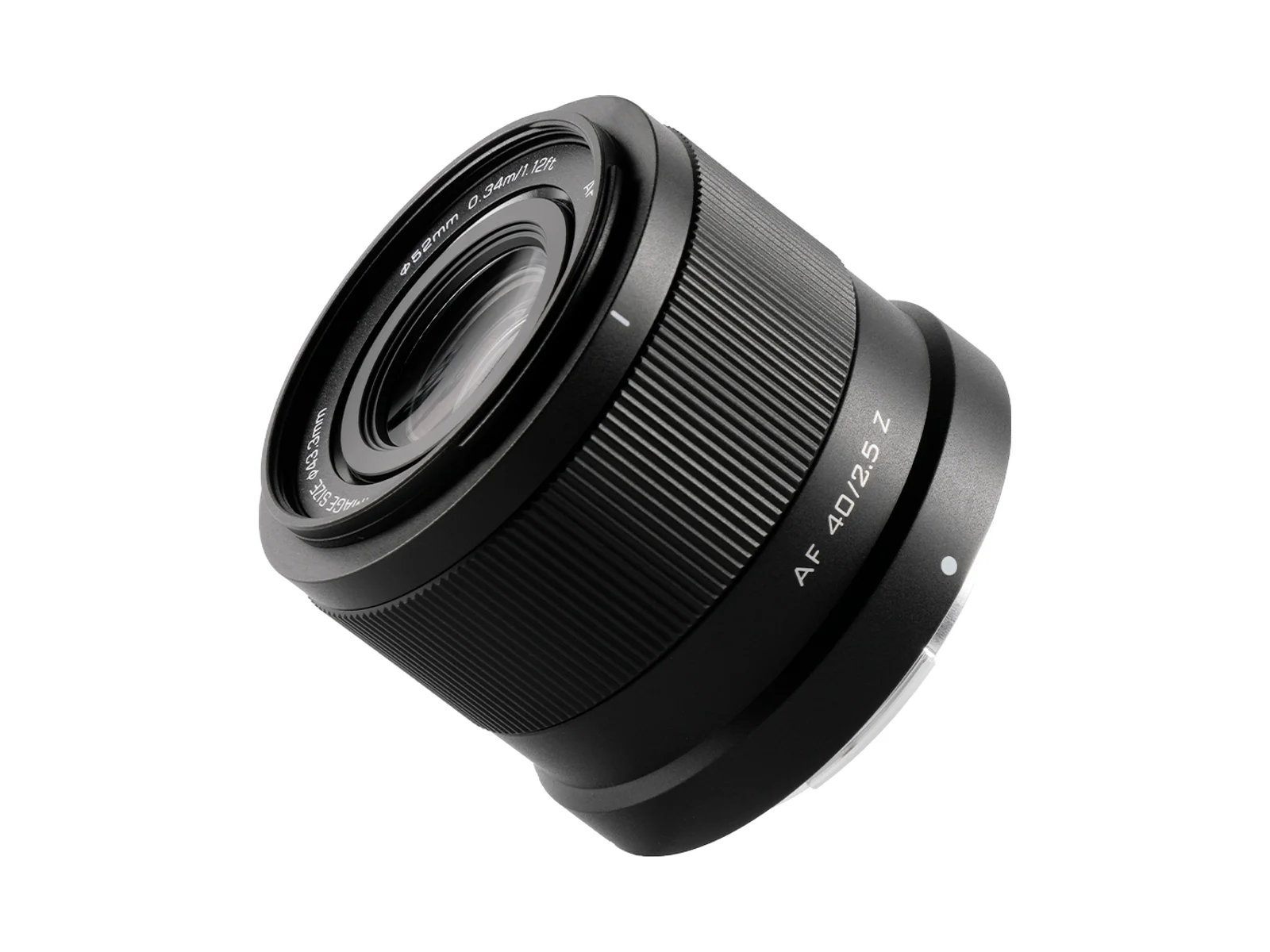

Viltrox AF 40mm F2.5 Air Z — AF 40mm F2.5 Z, three-quarter front view
AF 40mm F2.5 Z, three-quarter front view© VILTROX
ViltroxAir

Viltrox AF 40mm F2.5 Air Z

Z · PRIME
40mm
APERTURE
1:2.5
AF

Launch MSRP

$168
Weight
180g
Filter
⌀52mm
Min focus
0.34m
Max mag.
0.14×
Formula
10E / 6G
Released
2024
AlternativesCompare with…
01

Specification sheet

Optical construction

10
Elements
6
Groups
1 LD · 1 ASPH
7 rounded blades
  • 1x ED
  • 3x HR
  • 1x Aspherical
  • Nano Coating
Aperture range
f/2.5 — f/16

Physical & ergonomics

AIR
Weight
180g
⌀ × length
68.0 × 55.9mm
Filter
⌀52mm
Weather sealed
No
Aperture ring
No

Autofocus actuator

STM (Lead Screw)
Autofocus
Stabilisation
Body IBIS
Teleconverter
Not supported
AF speed score
7.6 / 10

Close-up performance

Min focus distance
0.34m
Max magnification
0.14× (1:7.1)
0.14×
0×0.25×0.5× half macro1.0× macro
02

Optical character

A small, cheap everyday prime from Viltrox's Air line. At 180g and under $170, it undercuts Nikon's own NIKKOR Z 40mm f/2 while offering a similar natural, slightly-wider-than-normal view. The Z version went on sale in April 2024, before the Sony E model.

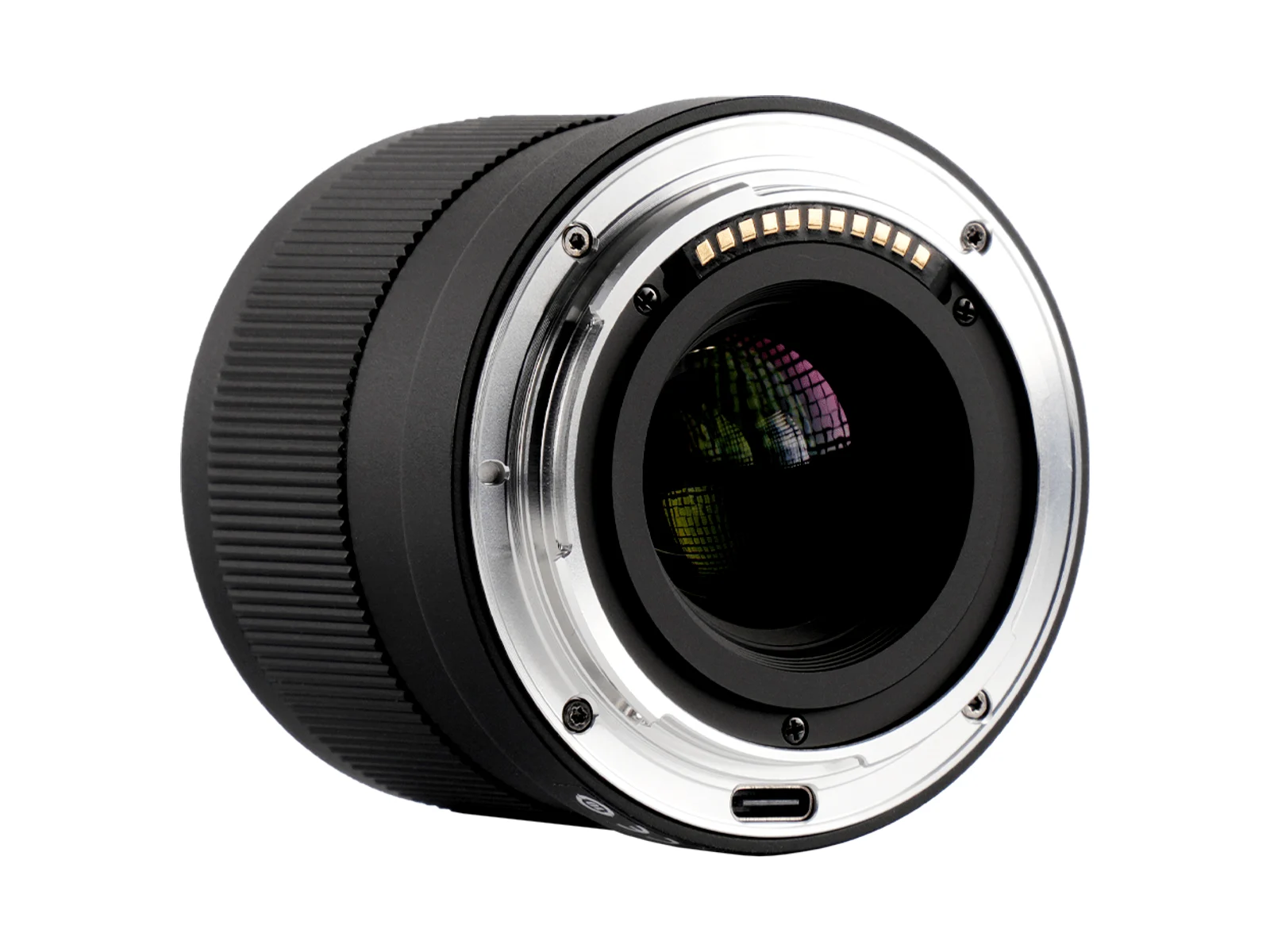

Ten elements, including one ED, three high-refractive-index and one aspherical, keep it compact. A lead-screw STM motor gives quiet autofocus with eye detection, and focus breathing is low for video. A USB-C port handles firmware updates, and it takes 52mm filters.

Reviewer consensus

Testers found it sharp across most of the frame from f/2.5, with weaker but acceptable edges and corners and only slight barrel distortion. Lateral colour fringing toward the edges is easily corrected in software, and bokeh is smooth without onion rings despite the 7-blade aperture.

AF is fast, nearly silent and tracks well with face/eye detection. The build is basic plastic over a metal mount, with no aperture ring, AF/MF switch or sealing. Most reviewers call it outstanding value, and some rate it optically ahead of the cheaper first-party 40mm.

Owner sentiment

Owners use it as a light walkaround and street lens on Zf, Z5 and Z6-series bodies and are pleased with the image quality for the price. Several compare it favourably with the NIKKOR Z 40mm f/2, and the small petal hood is popular.

Some mention a plasticky feel, slower AF in low light, and that f/2.5 limits subject separation. A few report early quality-control or shipping issues.

03

Strengths, weaknesses & performance

Strengths

  • +Light at 180g
  • +Very low price
  • +Sharp across most of the frame from f/2.5
  • +Quiet STM AF with eye detection
  • +Low focus breathing, 52mm filters

Weaknesses

  • −f/2.5 limits background blur
  • −Basic plastic build, no sealing
  • −No aperture ring or AF/MF switch

Six-axis rating

SHARPBOKEHAFFLAREBUILDVALUE
Sharpness
8.0
Bokeh Rendering
7.0
Autofocus Speed
7.6
Flare Resistance
7.4
Build / Sealing
6.8
Value / Size
9.3

Editorial 0–10 ratings synthesised from published reviews.

04

Technical specifications

Optics
MountNikon Z (FX) · full frame
Focal length40mm
CategoryStandard
Maximum aperturef/2.5
Minimum aperturef/16
Construction10 elements in 6 groups
Special elements1x ED · 3x HR · 1x Aspherical · Nano Coating
Aperture blades7
Focus
Focus typeAutofocus
DriveSTM (Lead Screw)
Minimum focus0.34m
Max magnification0.14×
StabilisationNone (uses body IBIS)
TeleconvertersNot supported
Body
Weight180g
Diameter × length68.0 × 55.9mm
Filter thread⌀52mm
Weather sealingNo
Aperture ringNo
De-clickable apertureNo
Release year2024
Launch MSRP$168 USD
05

Sources

Specifications

  • viltrox.com/products/viltrox-af-40mm-f2-5-z
  • viltrox.com/products/viltrox-af-40mm-f2-5-z.json
  • lenstip.com/2126-Viltrox_AF_40_mm_f_2.5_Air-lens_specifications.html
  • dustinabbott.net/2024/10/viltrox-af-40mm-f2-5-e-mount-review/
