Register/Nikon Z-mount/Viltrox/Wide

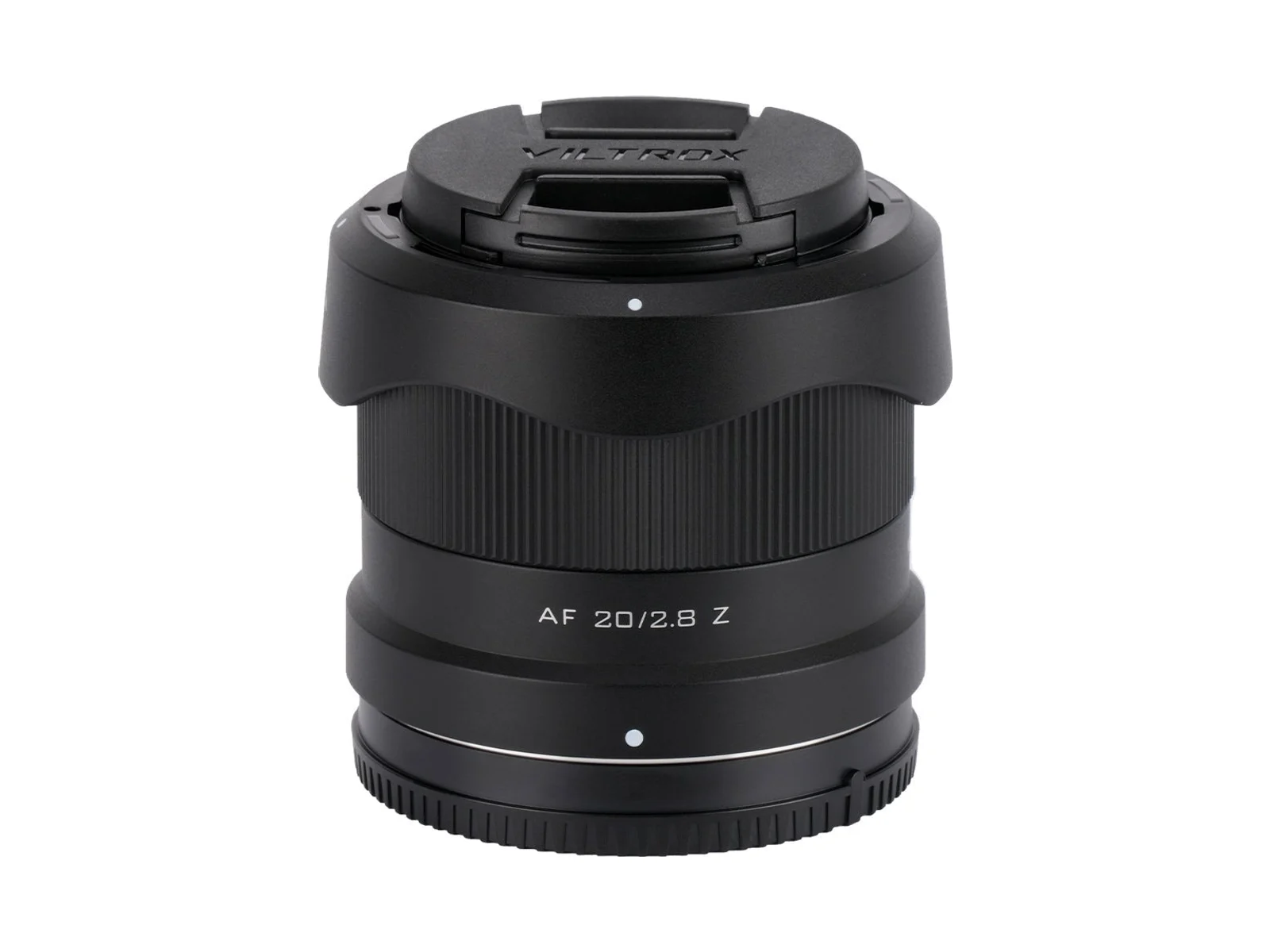

Viltrox AF 20mm F2.8 Air Z — AF 20mm F2.8 Z, three-quarter front view
AF 20mm F2.8 Z, three-quarter front view© VILTROX
ViltroxAir

Viltrox AF 20mm F2.8 Air Z

Z · PRIME
20mm
APERTURE
1:2.8
AF

Launch MSRP

$176
Weight
173g
Filter
⌀52mm
Min focus
0.19m
Max mag.
0.17×
Formula
10E / 8G
Released
2024
AlternativesCompare with…
01

Specification sheet

Optical construction

10
Elements
8
Groups
2 LD · 2 ASPH
7 rounded blades
  • 2x ED
  • 1x HR
  • 2x Aspherical
  • HD Nano Multi-layer Coating
  • Water & Oil Repellent Front Coating
Aperture range
f/2.8 — f/16

Physical & ergonomics

AIR
Weight
173g
⌀ × length
68.0 × 60.8mm
Filter
⌀52mm
Weather sealed
No
Aperture ring
No

Autofocus actuator

STM (Lead Screw)
Autofocus
Stabilisation
Body IBIS
Teleconverter
Not supported
AF speed score
7.3 / 10

Close-up performance

Min focus distance
0.19m
Max magnification
0.17× (1:5.9)
0.17×
0×0.25×0.5× half macro1.0× macro
02

Optical character

Viltrox's 20mm is a 173g full-frame wide-angle for Nikon Z that takes 52mm filters and costs less than most filter kits for bigger ultra-wides. It is aimed at vloggers, travel shooters and anyone who wants a 20mm field of view without the bulk of an f/1.8 or f/1.4 design.

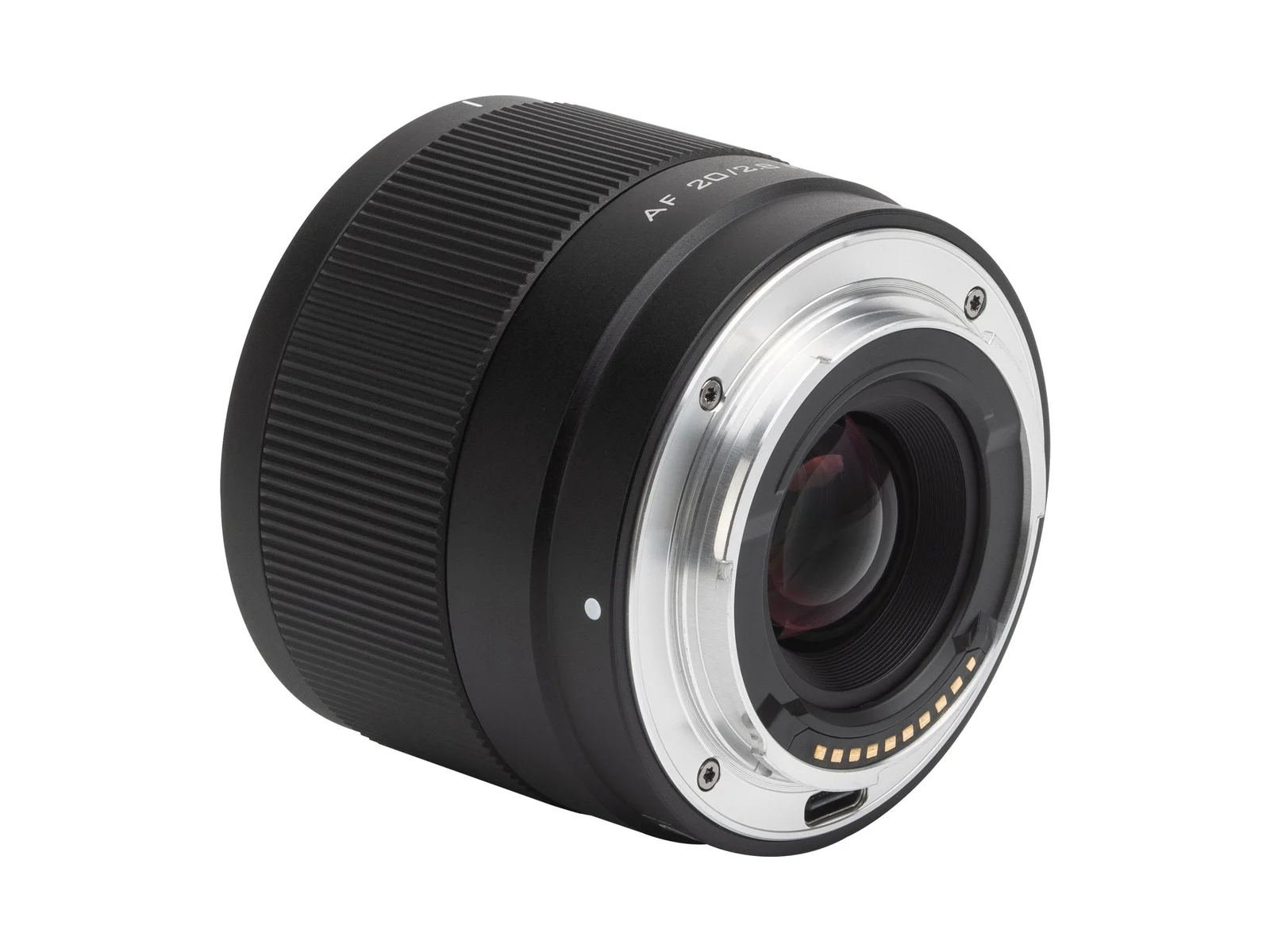

The 10-element design uses two ED, one high-index and two aspherical elements. Focus is internal and driven by a lead-screw STM motor, and the lens focuses down to 0.19m (0.17x). There is no aperture ring or switch; the barrel carries only a focus ring, and a USB-C port in the mount takes firmware updates. Viltrox now sells it as the AF 20mm F2.8 Air.

Reviewer consensus

Reviewers treat it as a budget lens that does the basics well. The centre is sharp from f/2.8, while the edges and extreme corners need f/5.6 to f/8 to catch up. Barrel distortion and vignetting are strong without correction, and the lens relies on camera or raw-converter profiles to clean them up.

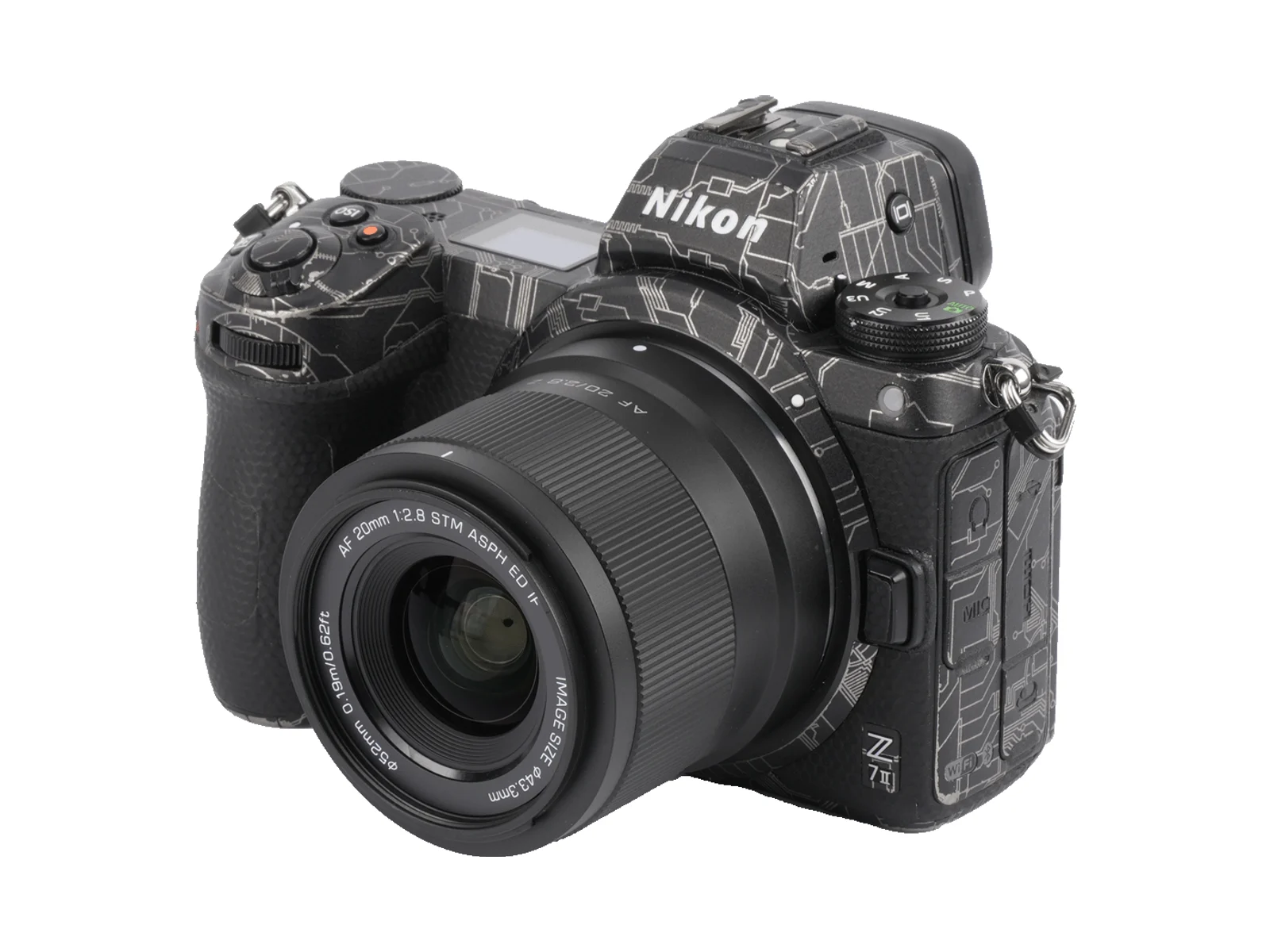

Autofocus is quiet and accurate enough for video and general use, though not as quick as the best first-party primes. Flare resistance is average and sunstars from the seven-blade aperture are acceptable. Most reviewers conclude that the size, weight and price outweigh the optical compromises, particularly on small bodies like the Nikon Zf or Z5.

Owner sentiment

Owners mostly buy it as a walk-around or vlogging lens for compact bodies and say it barely adds bulk to the camera. The close-focus distance and the low price get frequent praise, and Nikon shooters like having a small AF 20mm well below the price of the NIKKOR Z 20mm f/1.8 S.

Complaints focus on soft corners for landscape work, vignetting at f/2.8 and the plastic-feeling hood. Some users note f/2.8 is limiting for astrophotography compared with faster 20mm lenses.

03

Strengths, weaknesses & performance

Strengths

  • +173g and 52mm filters
  • +0.19m close focus (0.17x)
  • +Sharp centre from f/2.8
  • +Quiet STM AF for video
  • +Very low price

Weaknesses

  • −Soft corners wide open
  • −Strong vignetting and distortion uncorrected
  • −No aperture ring or AF/MF switch
  • −f/2.8 limits astro use

Six-axis rating

SHARPBOKEHAFFLAREBUILDVALUE
Sharpness
7.6
Bokeh Rendering
6.2
Autofocus Speed
7.3
Flare Resistance
6.8
Build / Sealing
7.0
Value / Size
9.2

Editorial 0–10 ratings synthesised from published reviews.

04

Technical specifications

Optics
MountNikon Z (FX) · full frame
Focal length20mm
CategoryWide
Maximum aperturef/2.8
Minimum aperturef/16
Construction10 elements in 8 groups
Special elements2x ED · 1x HR · 2x Aspherical · HD Nano Multi-layer Coating · Water & Oil Repellent Front Coating
Aperture blades7
Focus
Focus typeAutofocus
DriveSTM (Lead Screw)
Minimum focus0.19m
Max magnification0.17×
StabilisationNone (uses body IBIS)
TeleconvertersNot supported
Body
Weight173g
Diameter × length68.0 × 60.8mm
Filter thread⌀52mm
Weather sealingNo
Aperture ringNo
De-clickable apertureNo
Release year2024
Launch MSRP$176 USD
05

Sources

Specifications

  • viltrox.com/products/viltrox-af-20mm-f2-8-full-frame-lens-for-nikon-z-m
  • viltrox.com/products/viltrox-af-20mm-f2-8-full-frame-lens-for-nikon-z-m
  • viltrox.com/products/viltrox-af-20mm-f2-8
  • dpreview.com/products/viltrox/lenses/viltrox_af_20_2p8/specifications
