Laowa 20mm f/4 Zero-D Shift (L-Mount)
Launch MSRP
$1,099- Weight
- 747g
- Filter
- ⌀82mm
- Min focus
- 0.25m
- Max mag.
- 0.17×
- Formula
- 16E / 11G
- Released
- 2022
Also made for
Specification sheet
Optical construction
- 2x Aspherical
- 3x ED
- Aperture range
- f/4 — f/22
Physical & ergonomics
- Weight
- 747g
- ⌀ × length
- 95.0 × 91.0mm
- Filter
- ⌀82mm
- Weather sealed
- No
- Aperture ring
- Yes
Autofocus actuator
- Stabilisation
- Body IBIS
- Teleconverter
- Not supported
- AF speed score
- —
Close-up performance
- Min focus distance
- 0.25m
- Max magnification
- 0.17× (1:5.9)
Optical character
Laowa's 20mm shift lens offers ±11mm of shift with very low distortion, plus a normal 82mm filter thread, which most wide shift lenses cannot take. A 65mm image circle covers full frame with room to spare and allows ±8mm on medium format.

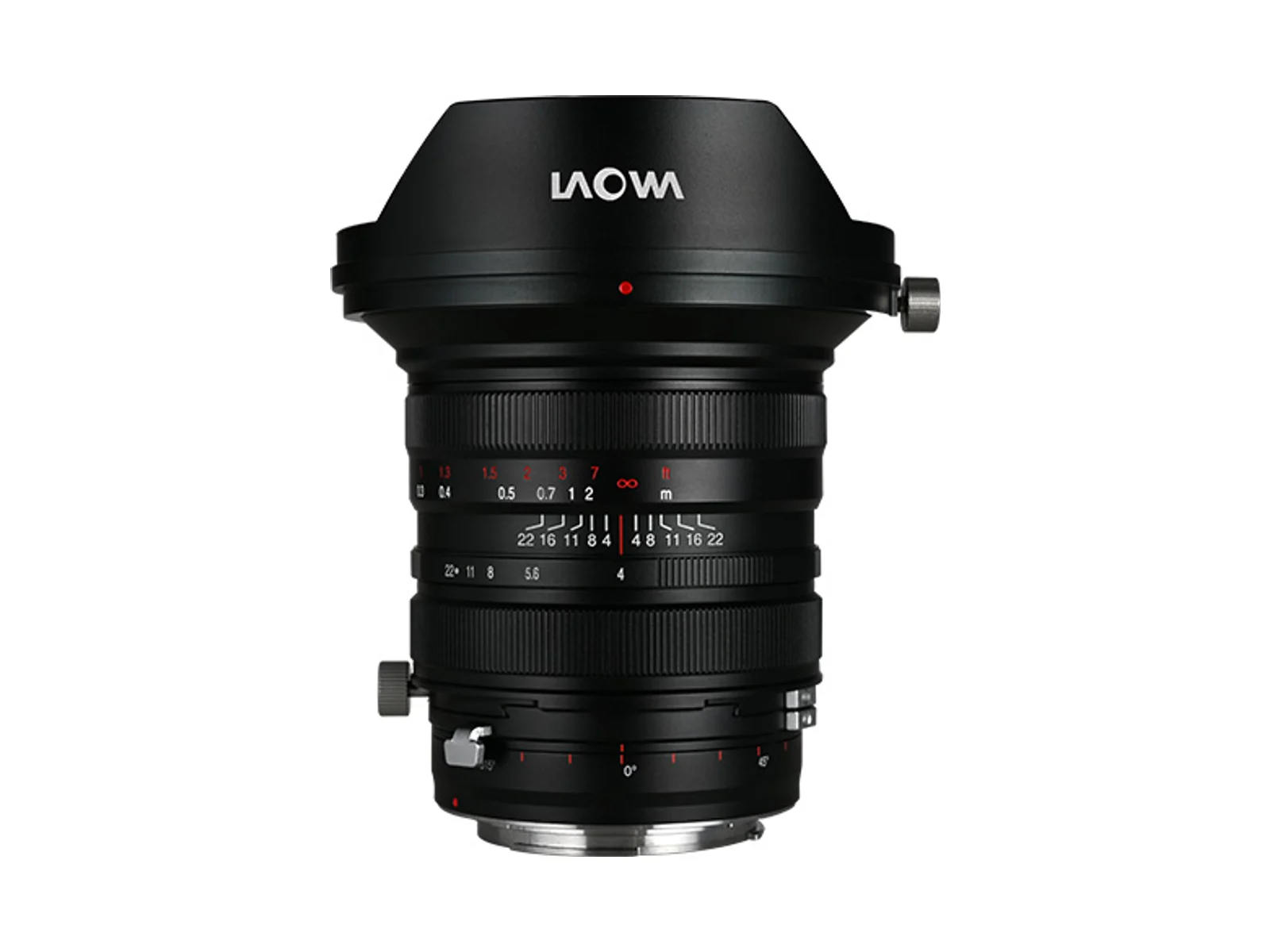

Shift is set with a large ring with a centre detent and a locking screw instead of a fiddly knob, and a lever lets the lens rotate 360° in 15° clicks, so you can shift in any direction or shoot stitched shift panoramas. The optics use 16 elements in 11 groups with two aspherical and three ED elements, and the 14-blade aperture gives 14-point sunstars at f/16–f/22. A rotatable petal hood comes in the box. It is a mechanical lens with no electronic contacts, so aperture is set on the lens and no EXIF is recorded.
Reviewer consensus
Testers found the centre very sharp from f/4 and the full-frame corners good wide open, with a soft zone in the inner mid-frame at f/4 that is gone by f/8. Shifted areas hold up well, and at f/8–f/11 they beat Canon's TS-E 17mm f/4L. Distortion is close to zero even when shifted, though not quite as low as on the 15mm Zero-D Shift, and longitudinal CA is very well controlled. Handling earns praise: the shift ring is easy to use, even with gloves, and the rotation clicks make multi-direction shifts simple.
The weak points are vignetting (about 2 EV centred and over 3 EV in a fully shifted corner wide open), lateral CA that is asymmetric when shifted and harder to correct, flare with the sun just outside the frame, and a hood that blocks sideways shift. Some markings are printed rather than engraved, the aperture clicks are faint and unevenly spaced, and there is no weather sealing. It is a DSLR-style design with a built-in adapter, so it is large for a 20mm f/4.
Owner sentiment
The one owner report read compares it with Nikon's PC-E 19mm, which he also uses: he rates the Laowa's optics as nearly as good as the Nikon and better than the PC-E 24mm, and prefers it with a polariser in urban work. He gets good results with up to about 9mm of shift with the hood fitted, using a slim filter.
His reservations are the small aperture ring, which makes the Nikon easier with gloves and in dim interiors, and that the hood limits filter choice. He also notes that spare parts are not supplied, so a lens needing parts has to be sent to China.
Strengths, weaknesses & performance
Strengths
- +±11mm shift, 360° rotation in 15° clicks
- +Very low distortion, even shifted
- +Takes 82mm screw-in filters
- +Sharp centre and good corners from f/4
- +14-blade aperture for 14-point sunstars
Weaknesses
- −Over 3 EV vignetting in shifted corners
- −Flare with the sun just outside the frame
- −Hood blocks lateral shift
- −Large and about 750g for a 20mm f/4
- −No electronic contacts or EXIF
Six-axis rating
- Sharpness
- 8.6
- Bokeh Rendering
- 6.3
- Autofocus Speed
- MF
- Flare Resistance
- 7.0
- Build / Sealing
- 8.4
- Value / Size
- 8.0
Editorial 0–10 ratings synthesised from published reviews.
Technical specifications
| Mount | L-Mount (FF) · full frame |
|---|---|
| Focal length | 20mm |
| Category | Wide |
| Maximum aperture | f/4 |
| Minimum aperture | f/22 |
| Construction | 16 elements in 11 groups |
| Special elements | 2x Aspherical · 3x ED |
| Aperture blades | 14 |
| Focus type | Manual Focus |
|---|---|
| Drive | Manual Helicoid |
| Minimum focus | 0.25m |
| Max magnification | 0.17× |
| Stabilisation | None (uses body IBIS) |
| Teleconverters | Not supported |
| Weight | 747g |
|---|---|
| Diameter × length | 95.0 × 91.0mm |
| Filter thread | ⌀82mm |
| Weather sealing | No |
| Aperture ring | Yes |
| De-clickable aperture | No |
| Release year | 2022 |
| Launch MSRP | $1,099 USD |
