Canon RF 16-28mm F2.8 IS STM
Launch MSRP
$1,149- Weight
- 445g
- Filter
- ⌀67mm
- Min focus
- 0.20m
- Max mag.
- 0.26×
- Formula
- 16E / 13G
- Released
- 2025
Specification sheet
Optical construction
- 1x GMo Aspherical
- 1x Hybrid Aspherical
- 4x UD
- Aperture range
- f/2.8 — f/22
Physical & ergonomics
- Weight
- 445g
- ⌀ × length
- 76.5 × 91.0mm
- Filter
- ⌀67mm
- Weather sealed
- Yes
- Aperture ring
- No
Autofocus actuator
- Stabilisation
- Optical
- Teleconverter
- Not supported
- AF speed score
- 8.4 / 10
Close-up performance
- Min focus distance
- 0.20m
- Max magnification
- 0.26× (1:3.8)
Optical character

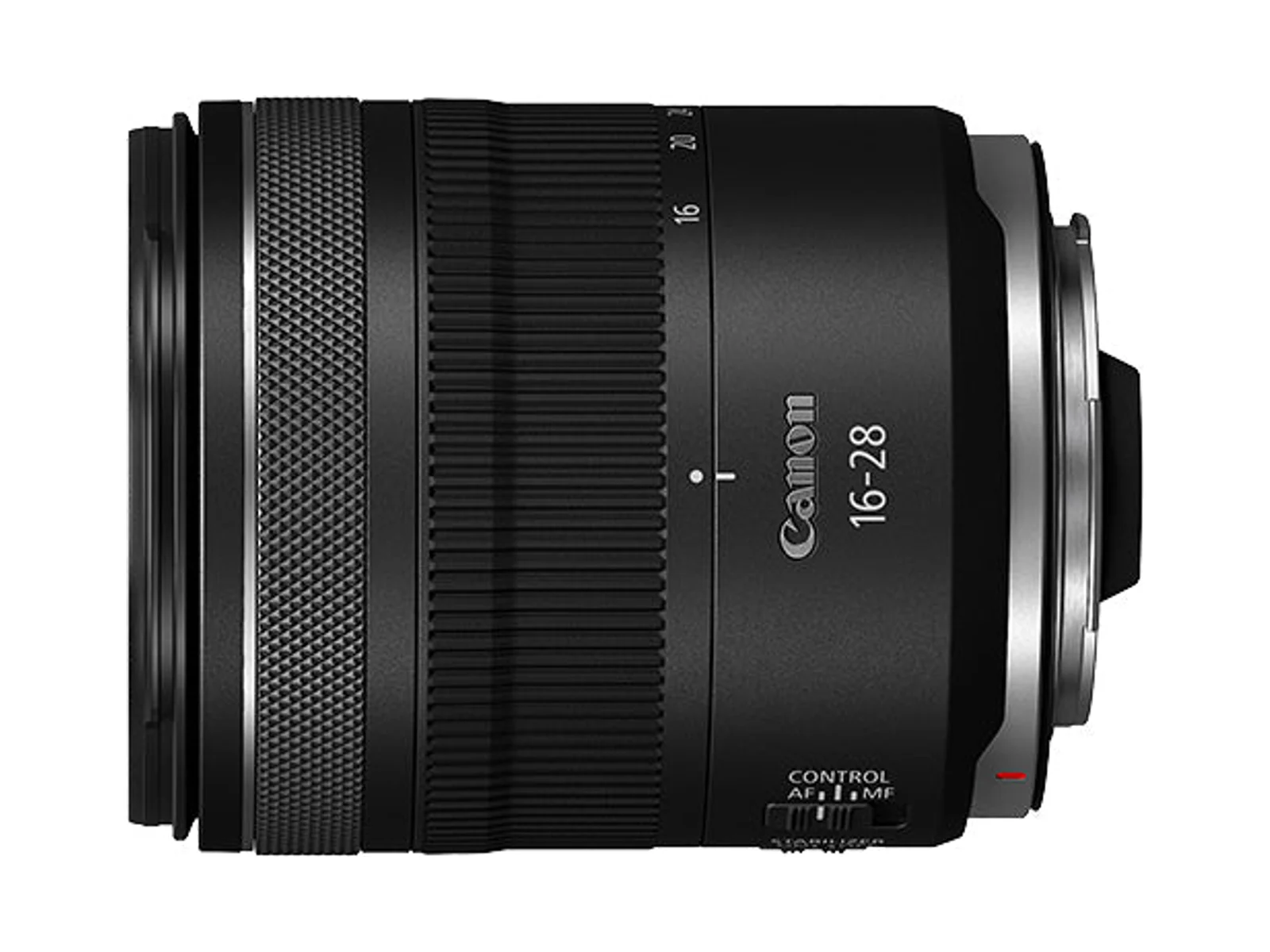

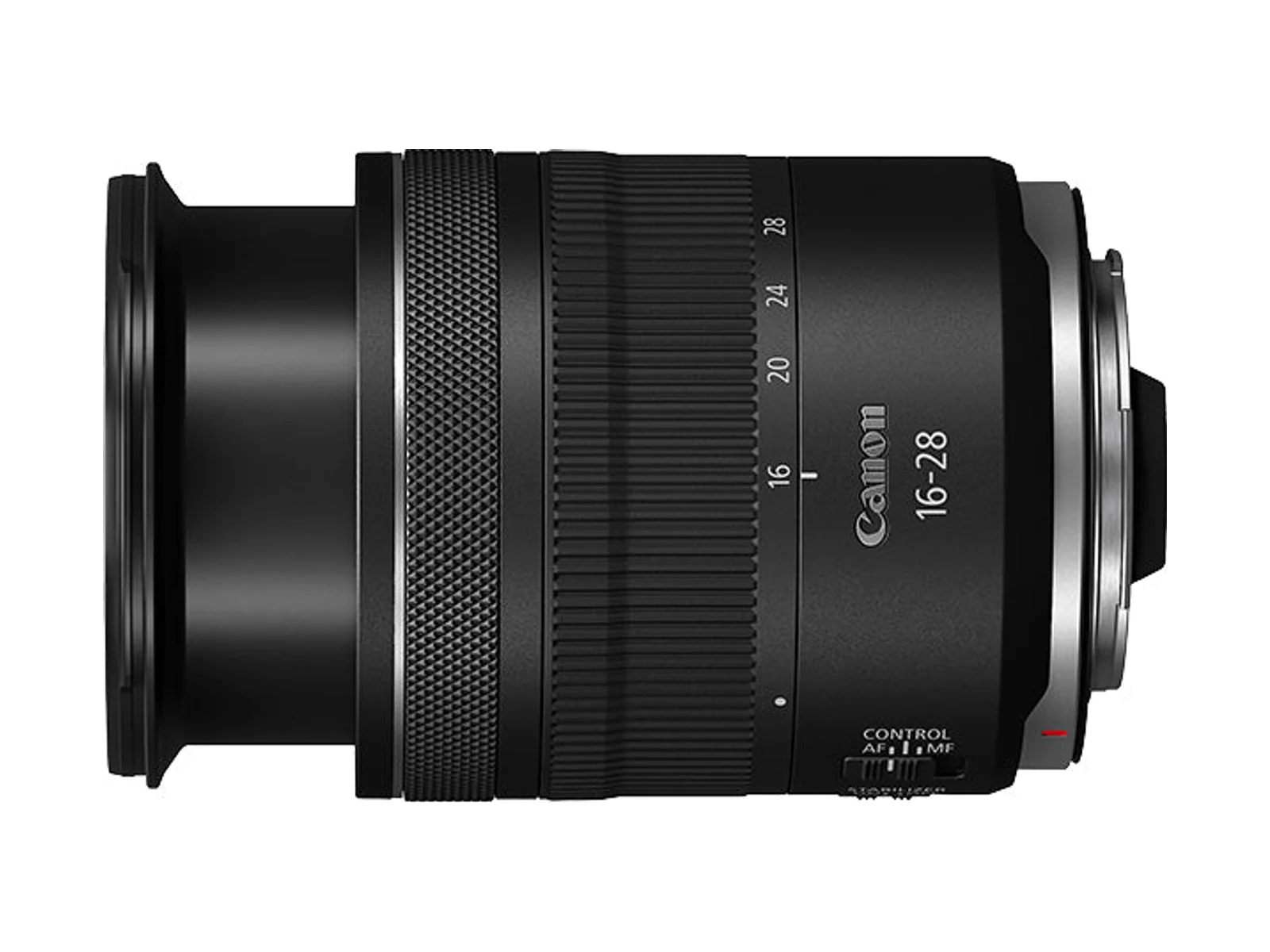

Canon's first non-L constant f/2.8 ultra-wide zoom for full frame, weighing 445g and retracting to 91mm for carrying. It extends when twisted to the shooting position and pairs naturally with the RF 28-70mm F2.8 IS STM as a light two-lens f/2.8 kit for travel, landscapes and interiors.

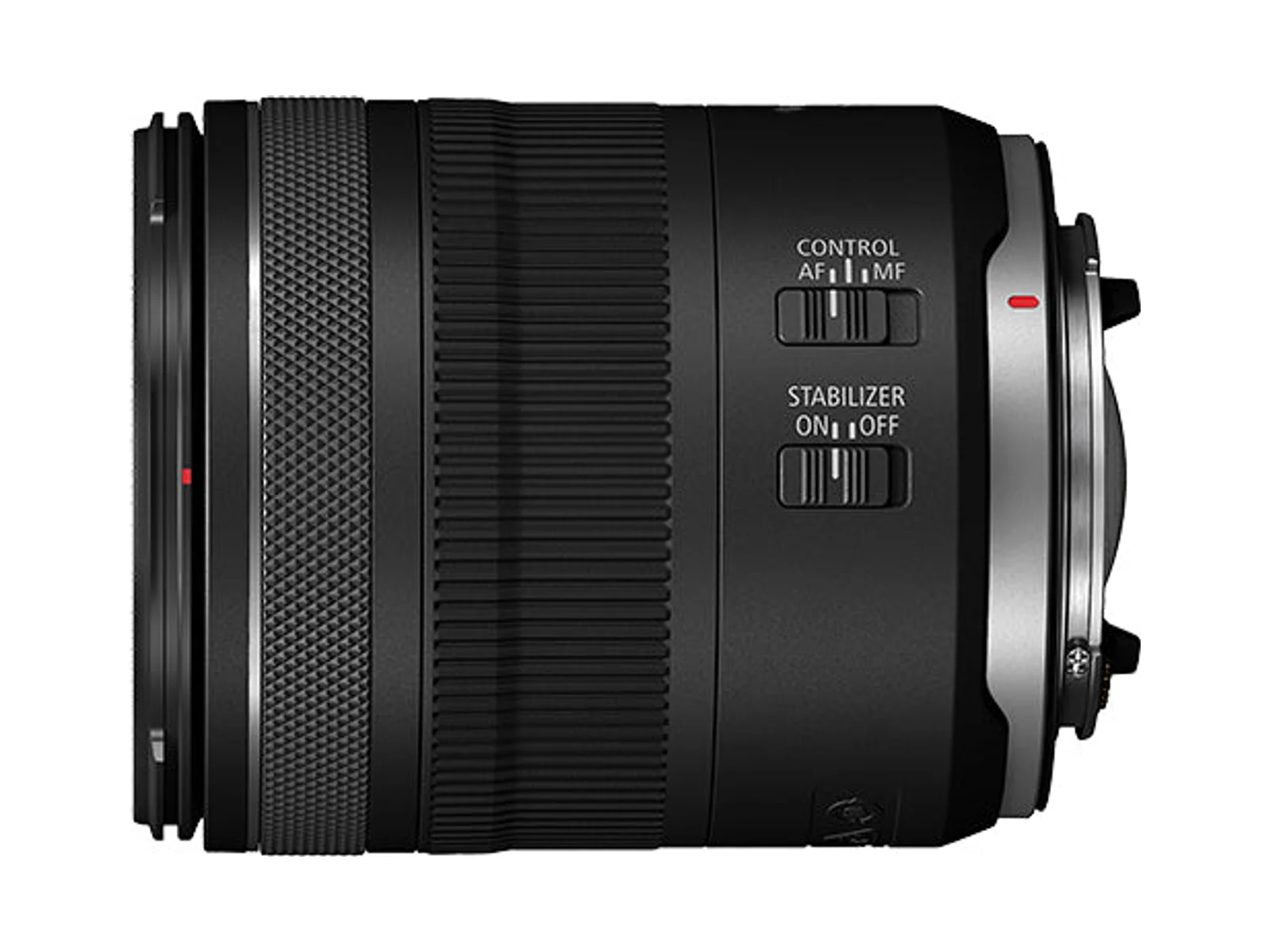

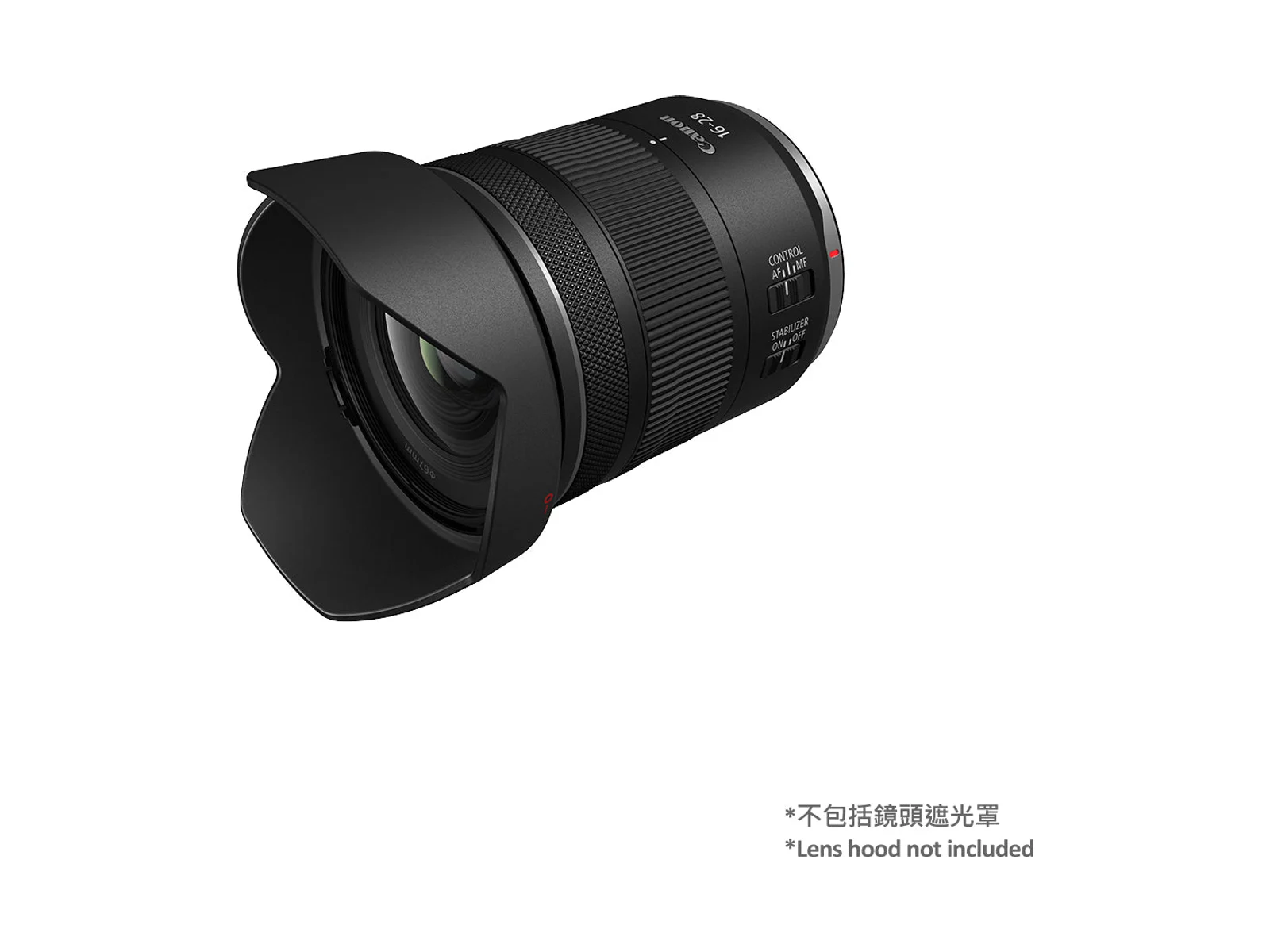

The 16-element, 13-group design uses one GMo glass-moulded aspherical, one large replica (hybrid) aspherical and four UD elements, and relies on always-on in-camera distortion correction. A lead-screw STM drives focus. Lens IS is rated at 5.5 stops and 8 with IBIS. One ring switches between focus and control functions, there is dust and drip sealing despite the non-L badge, and the hood is sold separately.
Reviewer consensus
Testers found the centre very sharp at f/2.8 through most of the range, with borders very good and corners good rather than excellent at 16mm, where the distortion correction stretches the image. One test also saw weaker edges around 24mm. Lateral colour fringing is very low, among the best results for an RF wide zoom, and close-focus bokeh is clean for the class. Sunstars form nicely from f/8.
Uncorrected files show severe barrel distortion, around 8% at 16mm, and black corners, so correction is mandatory and cannot be switched off in camera. Autofocus is fast and quiet, and focus breathing is low. Measured stabilisation was closer to 4 stops than the rated 5.5. The retracting barrel, plastic body, missing hood and partial sealing are the main build criticisms. One test called it a smart buy, the other questioned the price against the RF 14-35mm f/4L.
Owner sentiment
Owners praise the light weight and the f/2.8 aperture, and some pair it with the RF 28-70mm F2.8 IS STM as a compact kit that stays under 1kg. Many say sharpness is good across the zoom range and that the retracting design takes no getting used to. One chose it over the heavier RF 15-35mm f/2.8L or the slower RF 14-35mm f/4L for travel and star photography.
The complaints are the 28mm long end, corners at 16mm that never get fully sharp, the price compared with Sigma's 16-28mm on other mounts, and the lack of an included hood. One notes slightly slower focus than Nano USM lenses when racking from near to far and saw ghosting fairly easily.
Strengths, weaknesses & performance
Strengths
- +Constant f/2.8 at 445g
- +Retracts to 91mm
- +5.5-stop IS, 8 with IBIS
- +Very low colour fringing
- +Dust and drip resistant
Weaknesses
- −Severe uncorrected distortion, correction always on
- −Corners only good at 16mm
- −Barrel extends to shoot
- −Hood sold separately
Six-axis rating
- Sharpness
- 8.2
- Bokeh Rendering
- 7.4
- Autofocus Speed
- 8.4
- Flare Resistance
- 7.5
- Build / Sealing
- 7.6
- Value / Size
- 8.0
Editorial 0–10 ratings synthesised from published reviews.
Technical specifications
| Mount | Canon RF · full frame |
|---|---|
| Focal length | 16–28mm |
| Category | Ultra-Wide |
| Maximum aperture | f/2.8 |
| Minimum aperture | f/22 |
| Construction | 16 elements in 13 groups |
| Special elements | 1x GMo Aspherical · 1x Hybrid Aspherical · 4x UD |
| Aperture blades | 9 |
| Focus type | Autofocus |
|---|---|
| Drive | Lead-screw STM |
| Minimum focus | 0.20m |
| Max magnification | 0.26× |
| Stabilisation | Optical |
| Teleconverters | Not supported |
| Weight | 445g |
|---|---|
| Diameter × length | 76.5 × 91.0mm |
| Filter thread | ⌀67mm |
| Weather sealing | Yes |
| Aperture ring | No |
| De-clickable aperture | No |
| Release year | 2025 |
| Launch MSRP | $1,149 USD |
Sources
Verified against the pages below. Specifications come from the manufacturer; summaries only reflect reviews and owner reports we actually read.
Specifications
- canon.com.cn/product/rf1628f28/spec.html
- canon.com.cn/product/rf1628f28/
- global.canon/en/c-museum/product/rf547.html
Launch price
- canonrumors.com/canon-announces-the-rf16-28mm-f2-8-is-stm/
Professional reviews
- opticallimits.com/canon/canon-rf/canon-rf-16-28mm-f-2-8-is-stm-review/
- digitalcameraworld.com/cameras/lenses/canon-rf-16-28mm-f-2-8-is-stm-review
Owner reports
- review.kakaku.com/review/K0001672793/
