Canon RF 100mm F2.8 L Macro IS USM
Launch MSRP
$1,399- Weight
- 685g
- Filter
- ⌀67mm
- Min focus
- 0.26m
- Max mag.
- 1.40×
- Formula
- 17E / 13G
- Released
- 2021
Specification sheet
Optical construction
- Fluorine Coating
- Aperture range
- f/2.8 — f/32
Physical & ergonomics
- Weight
- 685g
- ⌀ × length
- 81.5 × 148.0mm
- Filter
- ⌀67mm
- Weather sealed
- Yes
- Aperture ring
- No
Autofocus actuator
- Stabilisation
- Optical
- Teleconverter
- Not supported
- AF speed score
- 8.6 / 10
Close-up performance
- Min focus distance
- 0.26m
- Max magnification
- 1.40× (1:0.7)
Optical character
Canon's first RF lens designed for macro and, by Canon's account, the world's first medium-telephoto macro with 1.4x magnification, reached at a 0.26m minimum focus distance with about 8.6cm of working distance at full magnification. The 17-element, 13-group design puts a concave element at the front and, by Canon's account, reaches its performance without special glass or special coatings beyond a fluorine-coated front element. Two Nano USM motors drive the focus and floating groups separately.

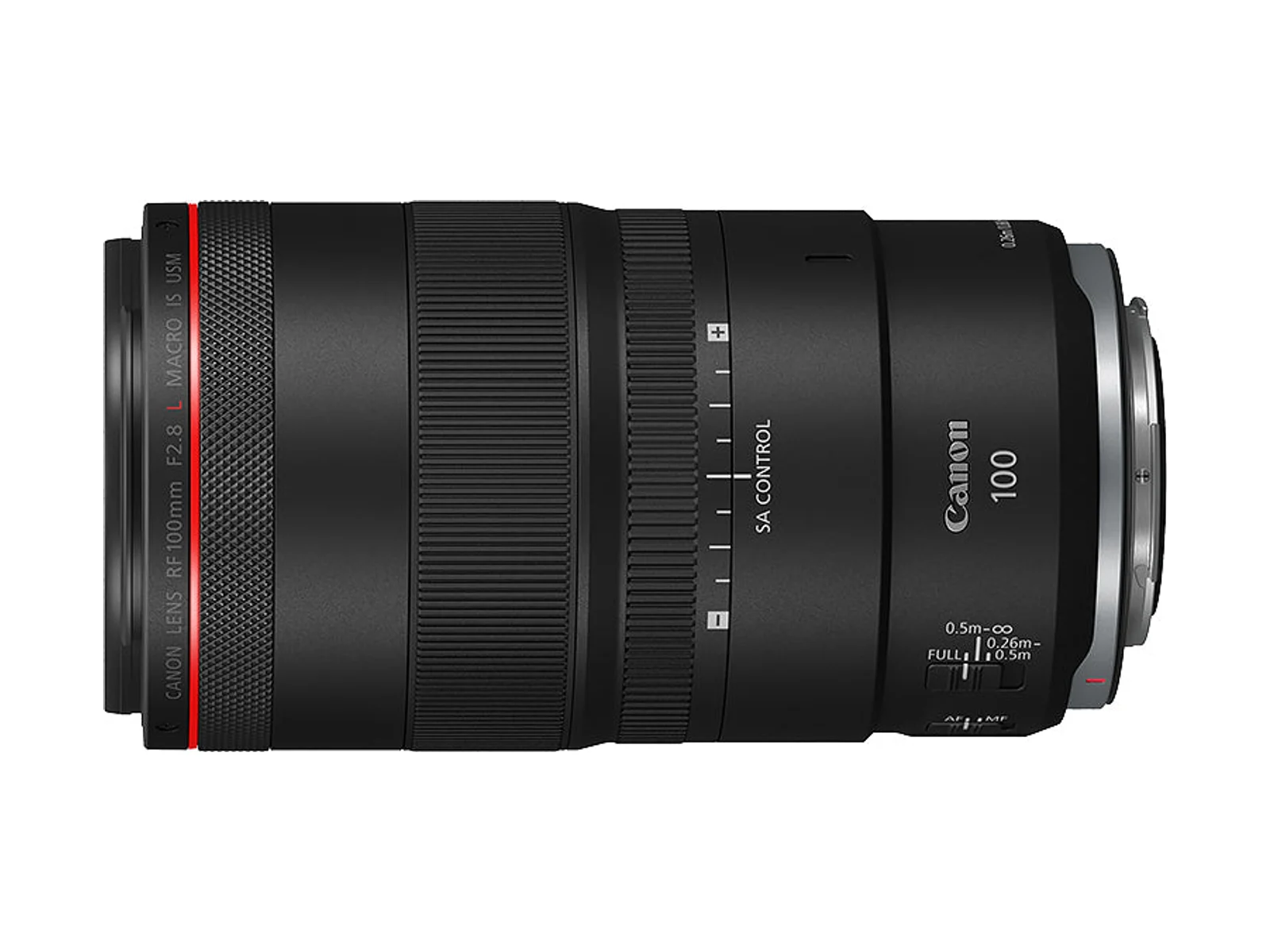

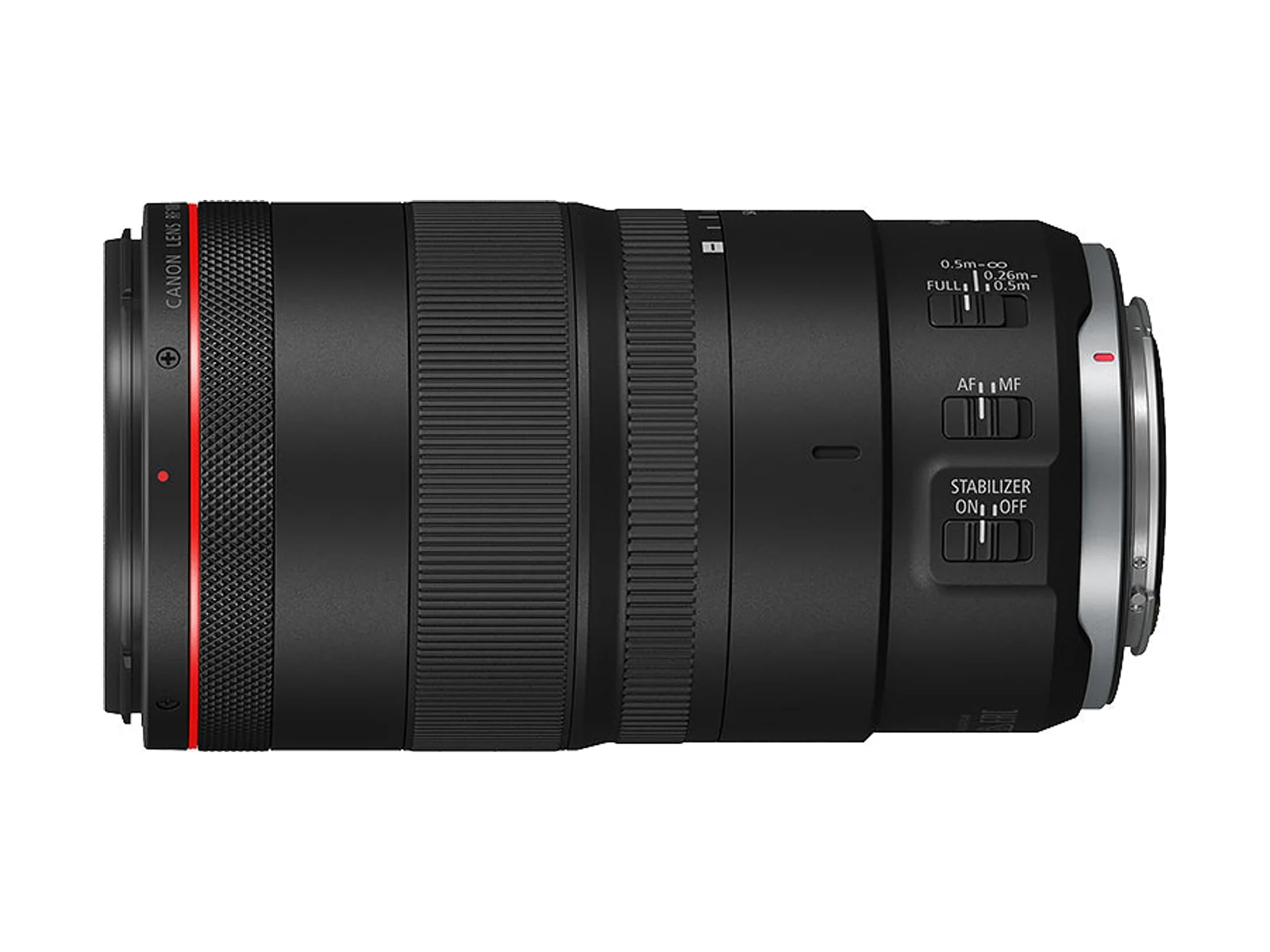

Its unusual feature is the SA control ring. Turning it changes spherical aberration, from soft, glowing outlines to harder, bubble-edged bokeh; a lock switch holds it at the neutral position. Optical IS gives 5 stops alone and up to 8 with in-body IS, with a hybrid mode for close-up shake. The lens is dust- and drip-resistant and has a control ring, a focus limiter and internal focusing. The tripod ring is optional.
Reviewer consensus
Testers found it very sharp across the frame from f/2.8, peaking around f/4 to f/5.6 and still very fine at f/11. Distortion is negligible and lateral CA is low, but raw vignetting is high at f/2.8 (about 2 stops) and needs correction or stopping down. Background blur is smooth and highlights are clean in the centre, while foreground blur is harsher and corner highlights turn to cat's eyes wide open.
Autofocus is fast and quiet for a macro lens, and the IS is effective, though testers did not see the full 8-stop claim. The SA ring splits opinion. Some value it for painterly bokeh and video, others call it a gimmick, and it softens the in-focus area as well as the blur. One lab test found the focus point moving back as the aperture closes at close range. Focus breathing results conflict between tests. The price is well above the EF 100mm L, and it is a long lens for a 100mm.
Owner sentiment
An owner shooting flowers and birds reports autofocus fast enough to track wind-blown flowers handheld in Servo mode, and even birds in flight at close range. He finds it sharp to the corners from f/2.8 to f/16 with a smooth transition into the out-of-focus areas, and in his own careful tests at 1x and 1.4x he saw no focus shift.

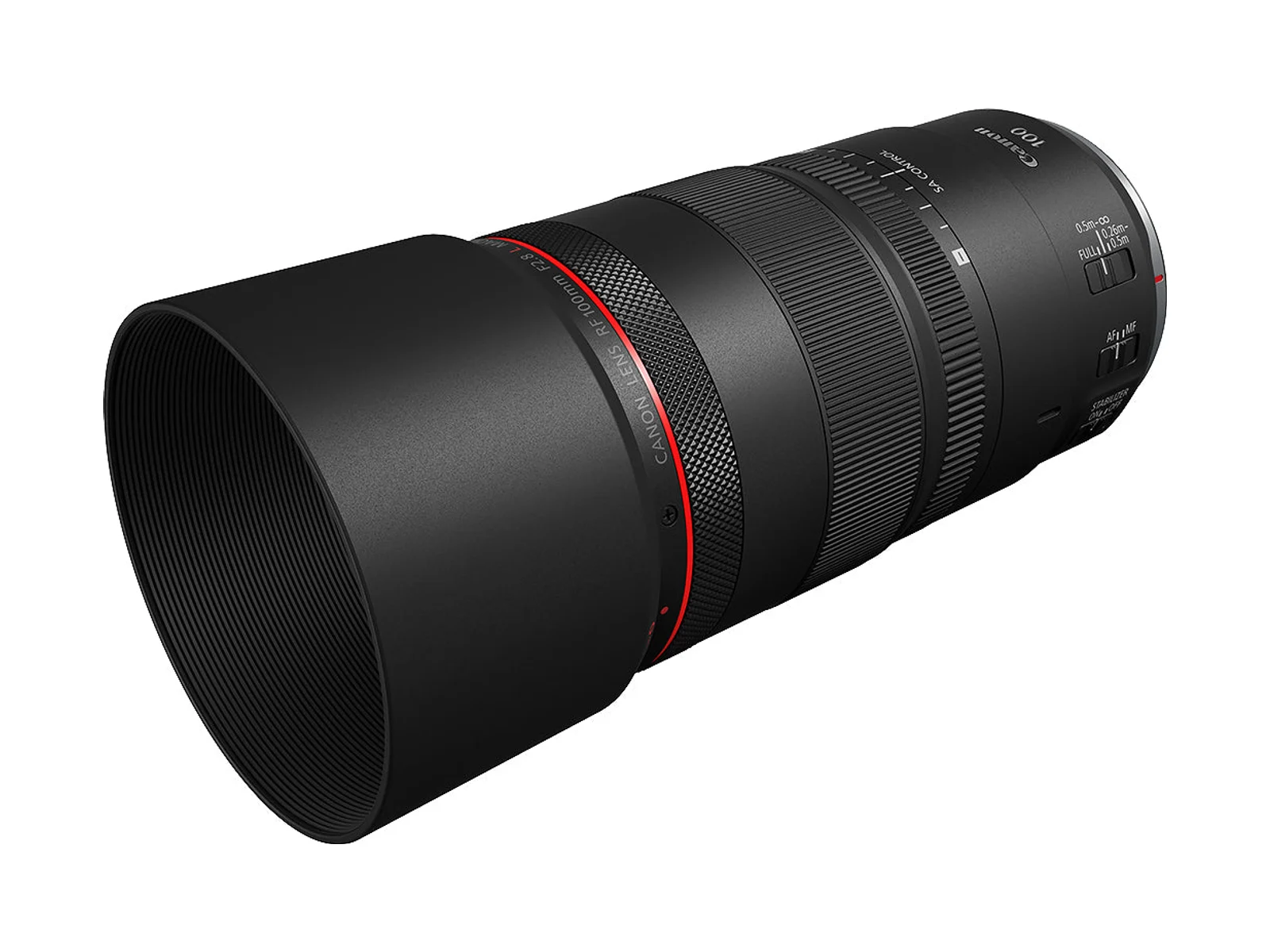

He measured about 3.5 stops of handheld benefit from the stabiliser, well short of Canon's figure but still useful. He keeps the SA ring locked and the control ring disabled to avoid accidental changes. His reservations are some flare with the sun on the front element (not an issue with the hood fitted) and vignetting at f/2.8.
Strengths, weaknesses & performance
Strengths
- +1.4x magnification without accessories
- +Sharp across the frame from f/2.8
- +SA control ring with lock switch
- +Fast, quiet dual Nano USM AF, focus limiter
- +5-stop IS (8 coordinated), sealed
Weaknesses
- −SA ring softens the focused image
- −Canon warns SA changes can shift focus
- −High raw vignetting at f/2.8
- −Pricier than the EF 100mm f/2.8L
- −Tripod ring sold separately
Six-axis rating
- Sharpness
- 9.4
- Bokeh Rendering
- 8.6
- Autofocus Speed
- 8.6
- Flare Resistance
- 8.2
- Build / Sealing
- 9.0
- Value / Size
- 7.7
Editorial 0–10 ratings synthesised from published reviews.
Technical specifications
| Mount | Canon RF · full frame |
|---|---|
| Focal length | 100mm |
| Category | Macro |
| Maximum aperture | f/2.8 |
| Minimum aperture | f/32 |
| Construction | 17 elements in 13 groups |
| Special elements | Fluorine Coating |
| Aperture blades | 9 |
| Focus type | Autofocus |
|---|---|
| Drive | Nano USM (x2) |
| Minimum focus | 0.26m |
| Max magnification | 1.40× |
| Stabilisation | Optical |
| Teleconverters | Not supported |
| Weight | 685g |
|---|---|
| Diameter × length | 81.5 × 148.0mm |
| Filter thread | ⌀67mm |
| Weather sealing | Yes |
| Aperture ring | No |
| De-clickable aperture | No |
| Release year | 2021 |
| Launch MSRP | $1,399 USD |
